Usage Examples#
Here are examples for how to use the API to compute the connectivity measures of interest.
import numpy as np
import matplotlib.pyplot as plt
from spectral_connectivity import Multitaper
from spectral_connectivity import Connectivity
from spectral_connectivity import multitaper_connectivity
Power Spectrum#

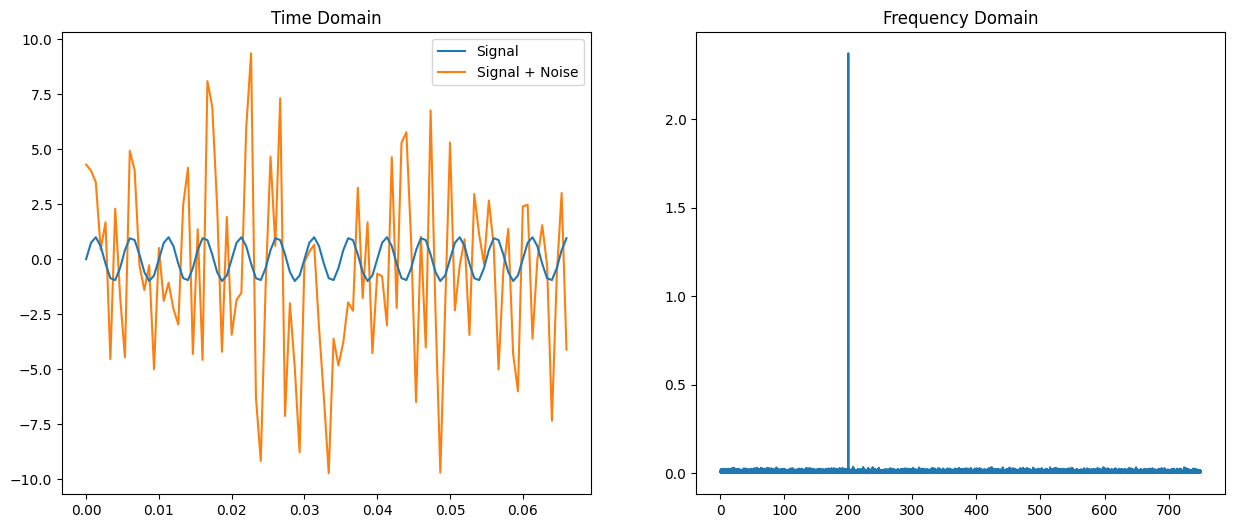

200 Hz signal#
# Simulate signal with noise
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time * frequency_of_interest)
noise = np.random.normal(0, 4, len(signal))
# Plot
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
axes[0].plot(time[:100], signal[:100], label="Signal", zorder=3)
axes[0].plot(time[:100], signal[:100] + noise[:100], label="Signal + Noise")
axes[0].legend()
axes[0].set_title("Time Domain")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1].set_title("Frequency Domain")
Text(0.5, 1.0, 'Frequency Domain')

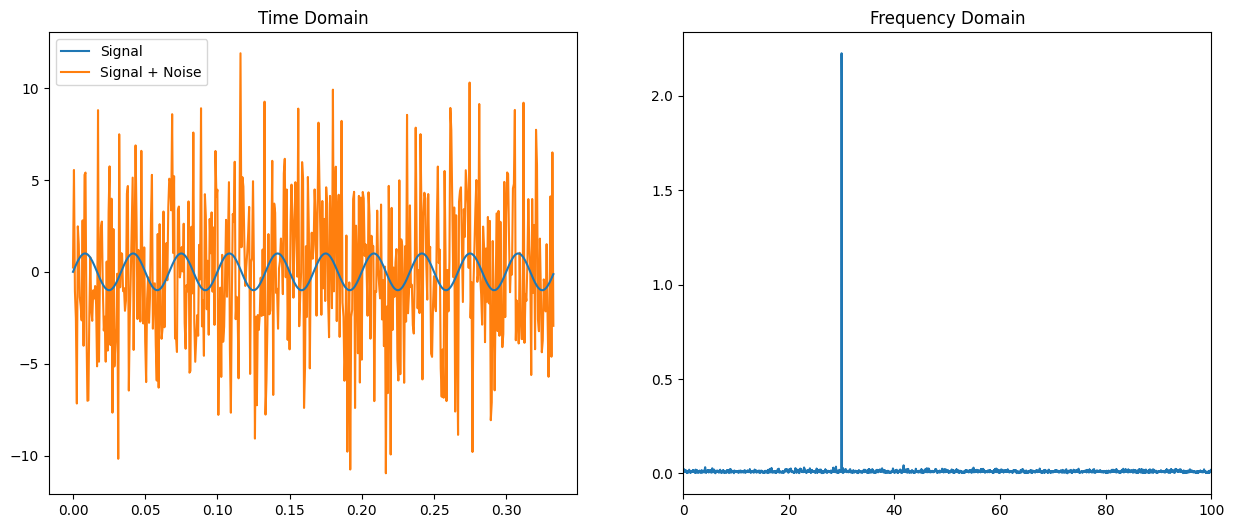

30 Hz signal#
# Simulate signal with noise
frequency_of_interest = 30
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time * frequency_of_interest)
noise = np.random.normal(0, 4, len(signal))
# Plot
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
axes[0].plot(time[:500], signal[:500], label="Signal", zorder=3)
axes[0].plot(time[:500], signal[:500] + noise[:500], label="Signal + Noise")
axes[0].legend()
axes[0].set_title("Time Domain")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1].set_title("Frequency Domain")
axes[1].set_xlim((0, 100))
(0.0, 100.0)
Spectrogram#

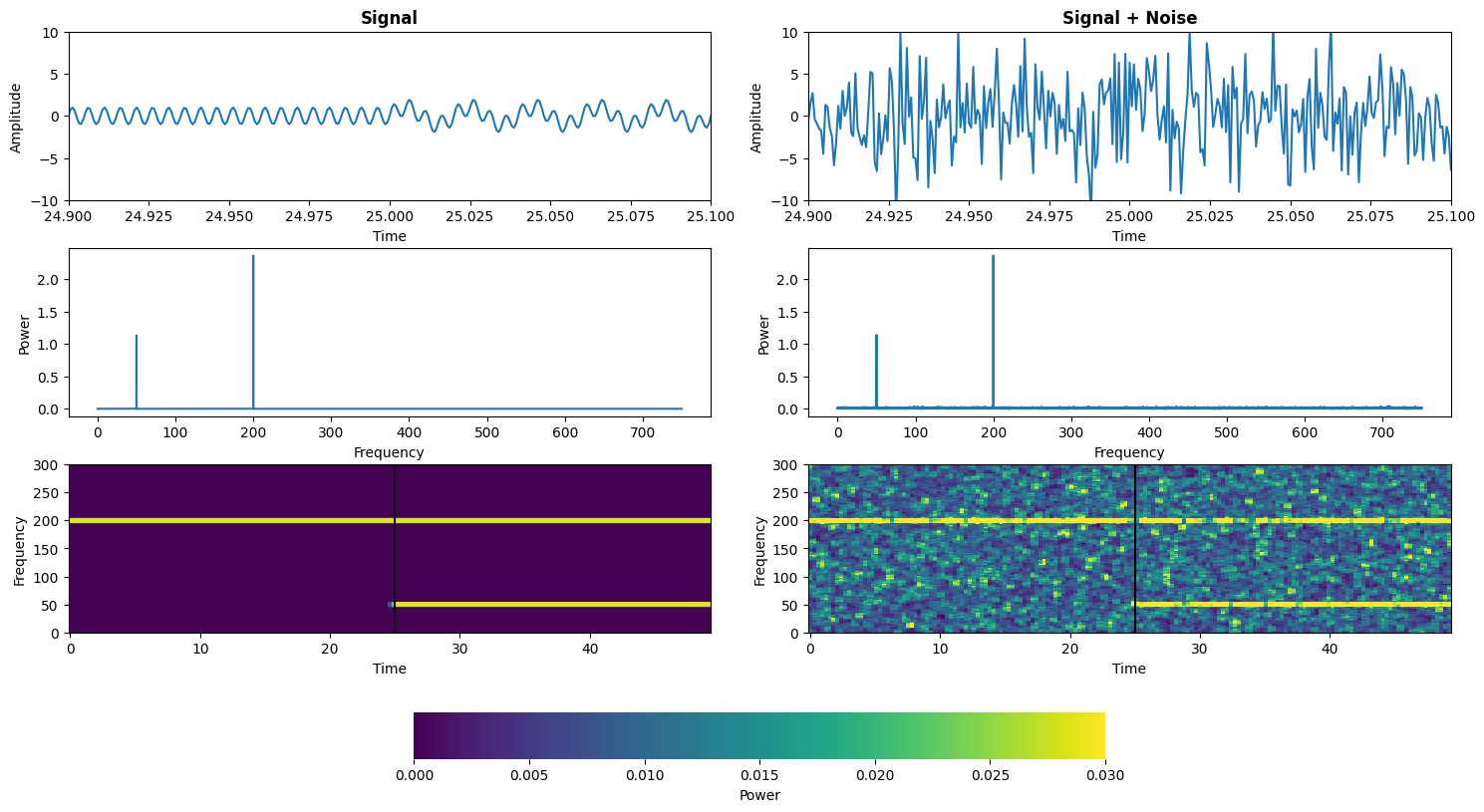

No trials, 200 Hz signal with 50 Hz signal starting at 25 seconds#
# Simulate signal
frequency_of_interest = [200, 50]
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)
noise = np.random.normal(0, 4, signal.shape)
# Plot
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_xlim((24.90, 25.10))
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal + noise)
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim((24.90, 25.10))
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1, 0].set_xlabel("Frequency")
axes[1, 0].set_ylabel("Power")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1, 1].set_xlabel("Frequency")
axes[1, 1].set_ylabel("Power")
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
time_window_duration=0.600,
time_window_step=0.300,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
axes[2, 0].set_ylabel("Frequency")
axes[2, 0].set_xlabel("Time")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
time_window_duration=0.600,
time_window_step=0.300,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
axes[2, 1].set_ylabel("Frequency")
axes[2, 1].set_xlabel("Time")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)

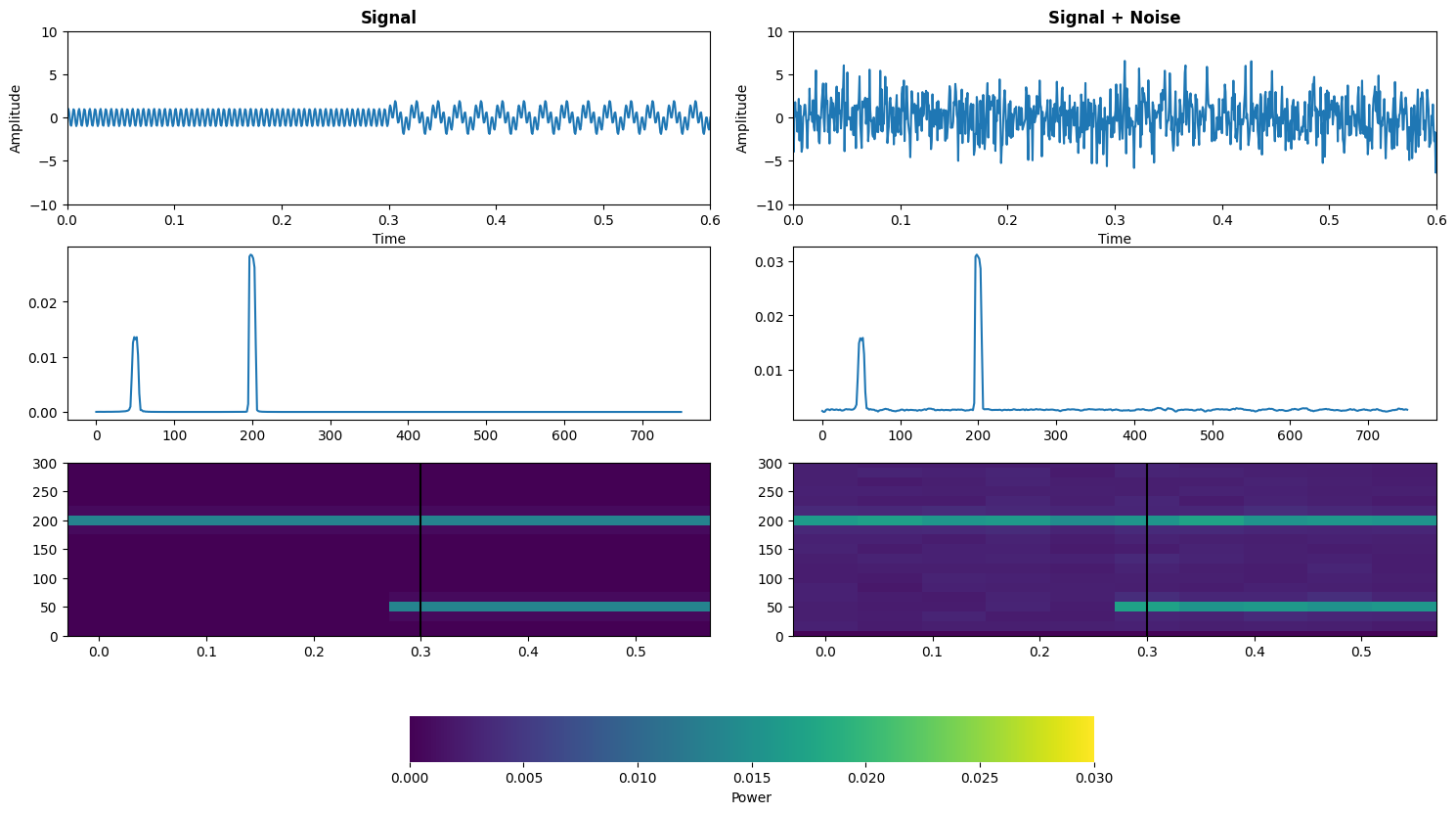

With trial structure (time x trials)#
time_halfbandwidth_product = 1
frequency_of_interest = [200, 50]
time_extent = (0, 0.600)
n_trials = 100
sampling_frequency = 1500
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)[:, np.newaxis, np.newaxis]
noise = np.random.normal(0, 2, size=(n_time_samples, n_trials, 1))
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal.squeeze())
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal[:, 0, 0] + noise[:, 0, 0])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 33.333333333333336
Decrease frequency resolution by decreasing time_halfbandwidth#
time_halfbandwidth_product = 3
frequency_of_interest = [200, 50]
time_extent = (0, 0.600)
n_trials = 100
sampling_frequency = 1500
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)[:, np.newaxis, np.newaxis]
noise = np.random.normal(0, 2, size=(n_time_samples, n_trials, 1))
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal.squeeze())
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal[:, 0, 0] + noise[:, 0, 0])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 100.0

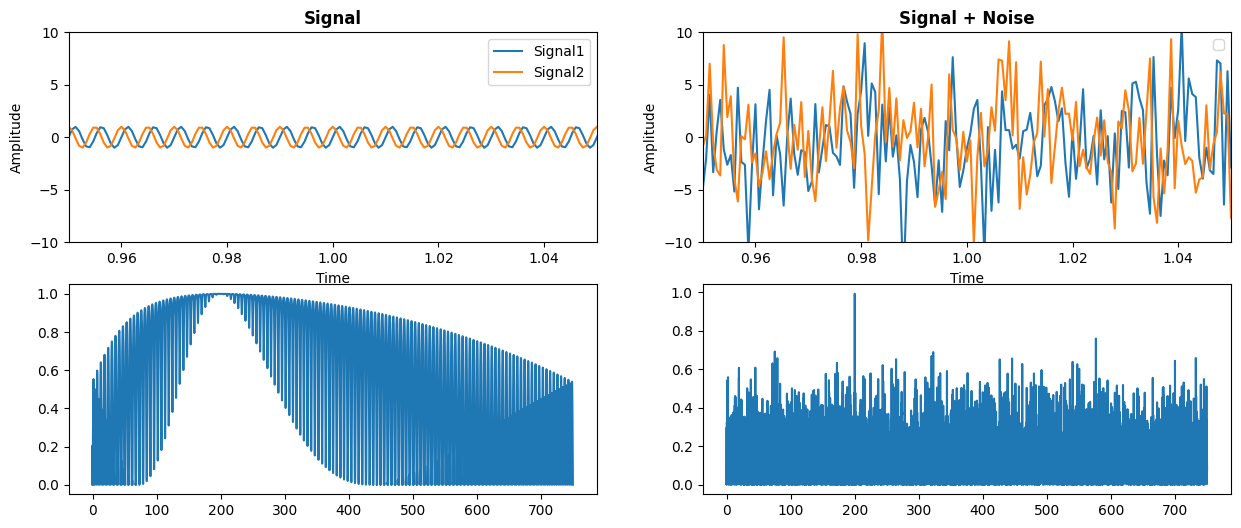

Coherence#
No trials, 200 Hz, \(\pi / 2\) phase offset#
time_halfbandwidth_product = 5
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 50)
n_signals = 2
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_signals))
signal[:, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.pi / 2
signal[:, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 4, signal.shape)
plt.figure(figsize=(15, 6))
plt.subplot(2, 2, 1)
plt.title("Signal", fontweight="bold")
plt.plot(time, signal[:, 0], label="Signal1")
plt.plot(time, signal[:, 1], label="Signal2")
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim((0.95, 1.05))
plt.ylim((-10, 10))
plt.legend()
plt.subplot(2, 2, 2)
plt.title("Signal + Noise", fontweight="bold")
plt.plot(time, signal + noise)
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim((0.95, 1.05))
plt.ylim((-10, 10))
plt.legend()
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 3)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 4)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
No handles with labels found to put in legend.
[<matplotlib.lines.Line2D at 0x7f8620ad3610>]

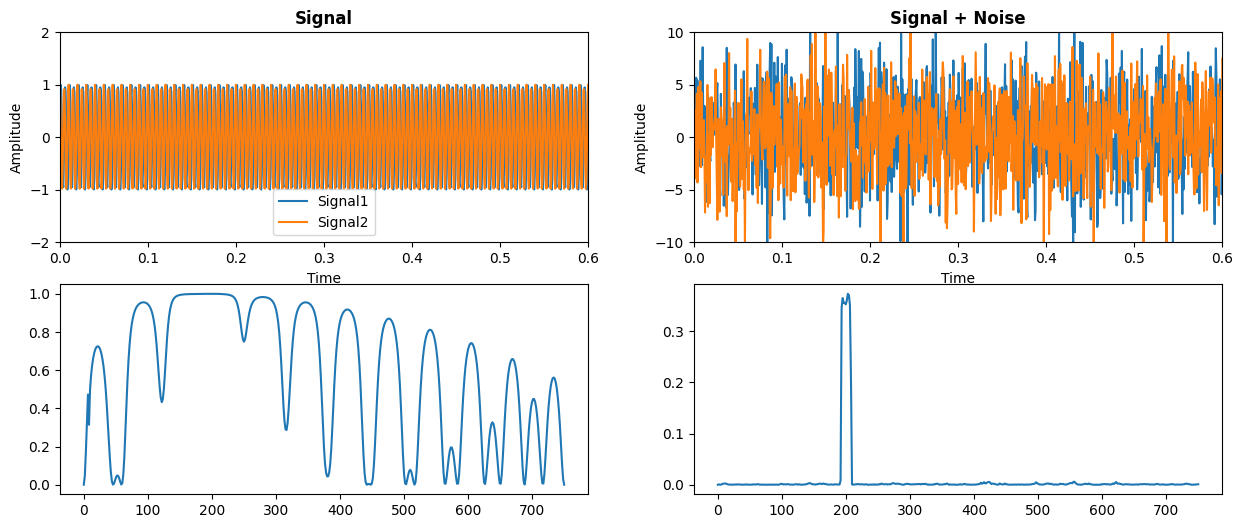

With trial structure (time x trials), 200 Hz, \(\pi / 2\) phase offset#
time_halfbandwidth_product = 5
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 0.600)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 4, signal.shape)
plt.figure(figsize=(15, 6))
plt.subplot(2, 2, 1)
plt.title("Signal", fontweight="bold")
plt.plot(time, signal[:, 0, 0], label="Signal1")
plt.plot(time, signal[:, 0, 1], label="Signal2")
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim(time_extent)
plt.ylim((-2, 2))
plt.legend()
plt.subplot(2, 2, 2)
plt.title("Signal + Noise", fontweight="bold")
plt.plot(time, signal[:, 0, :] + noise[:, 0, :])
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim(time_extent)
plt.ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 3)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 4)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
[<matplotlib.lines.Line2D at 0x7f86510a88d0>]

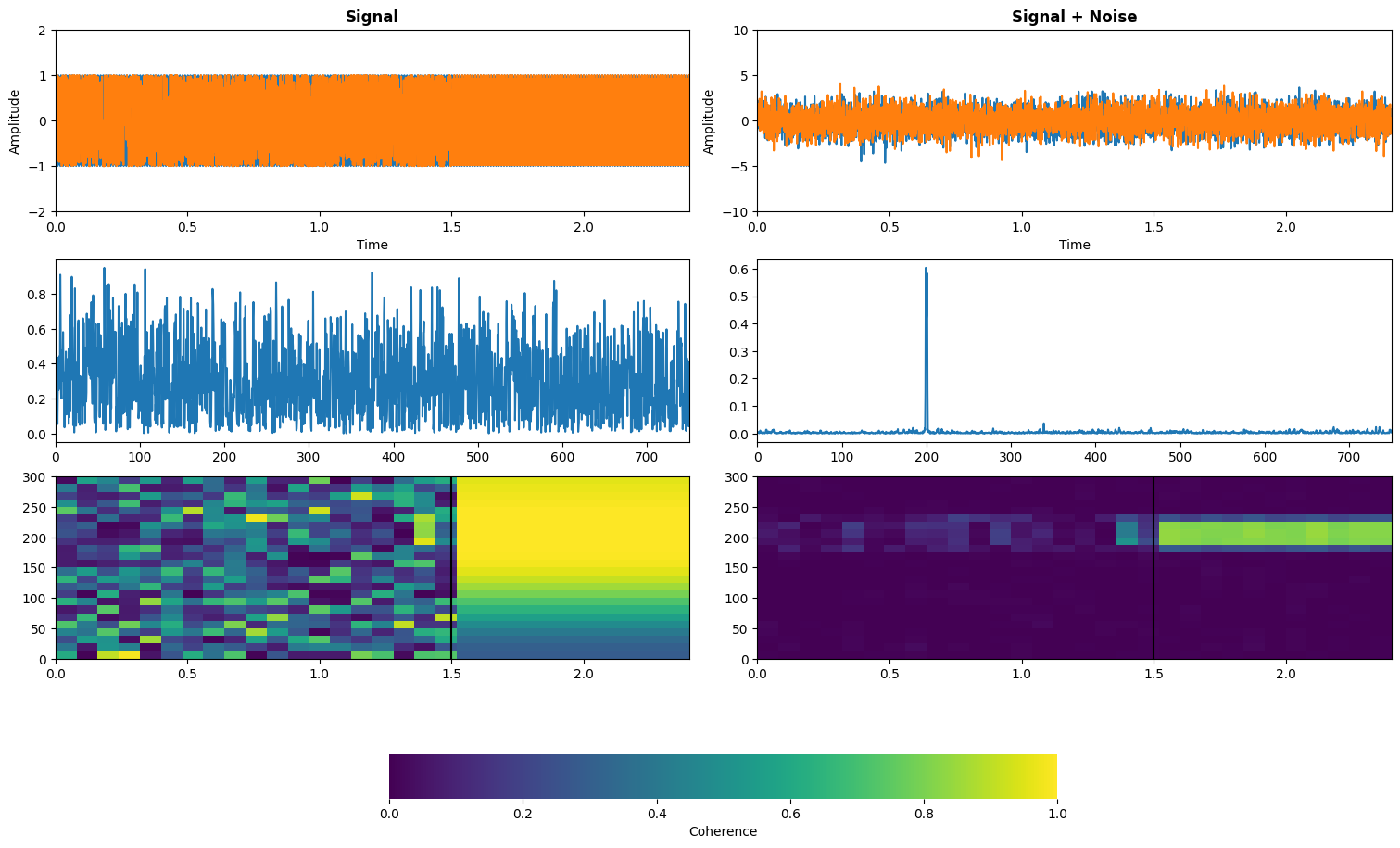

Cohereograms#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0
Imaginary Coherence#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.imaginary_coherence()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.imaginary_coherence()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.imaginary_coherence()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.imaginary_coherence()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Imaginary Coherence",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0

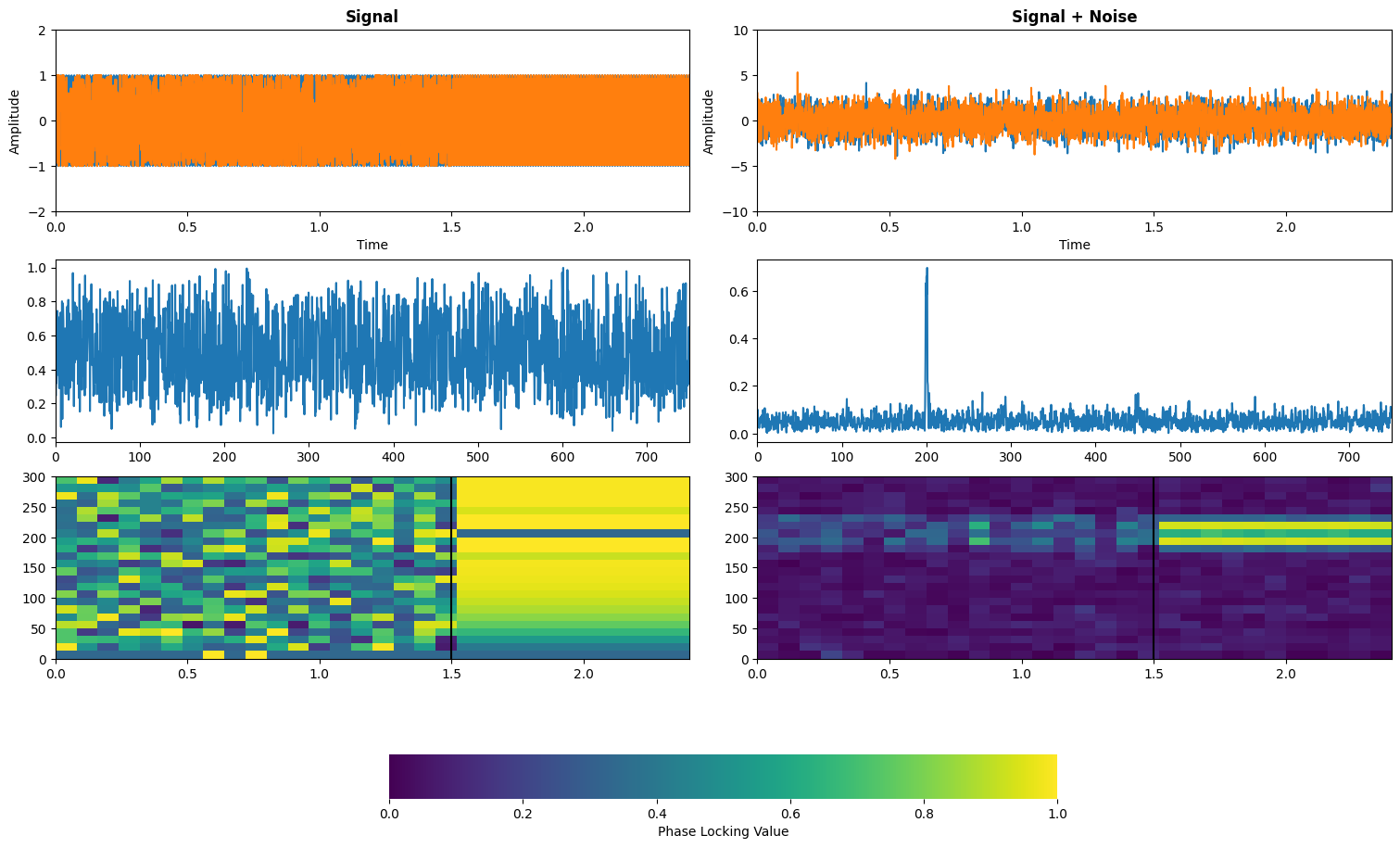

Phase Locking Value#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.phase_locking_value()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.phase_locking_value()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_locking_value()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_locking_value()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Phase Locking Value",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0

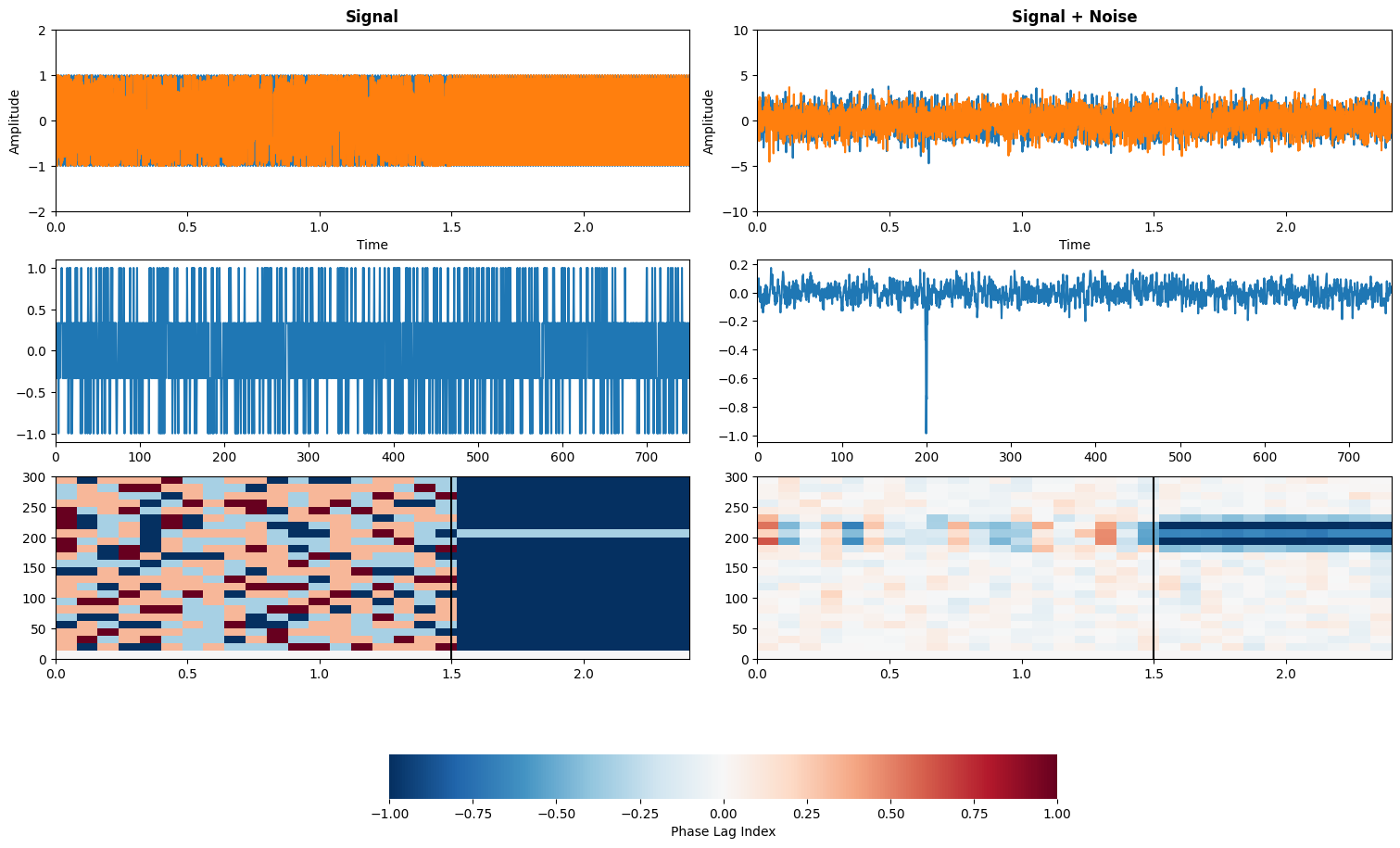

Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.phase_lag_index()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.phase_lag_index()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Phase Lag Index",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0

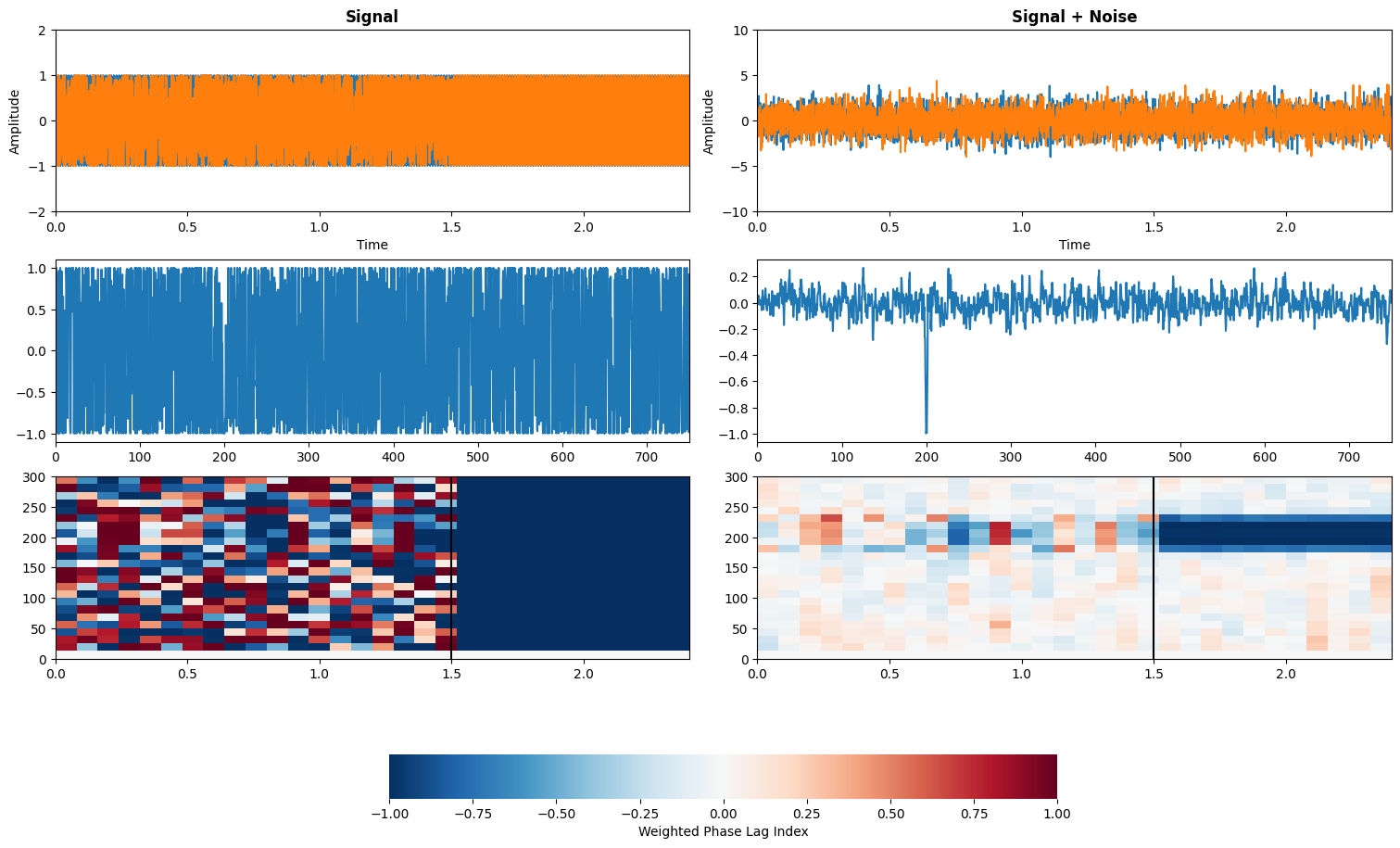

Weighted Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Weighted Phase Lag Index",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Debiased Squared Phase Lag Index",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0

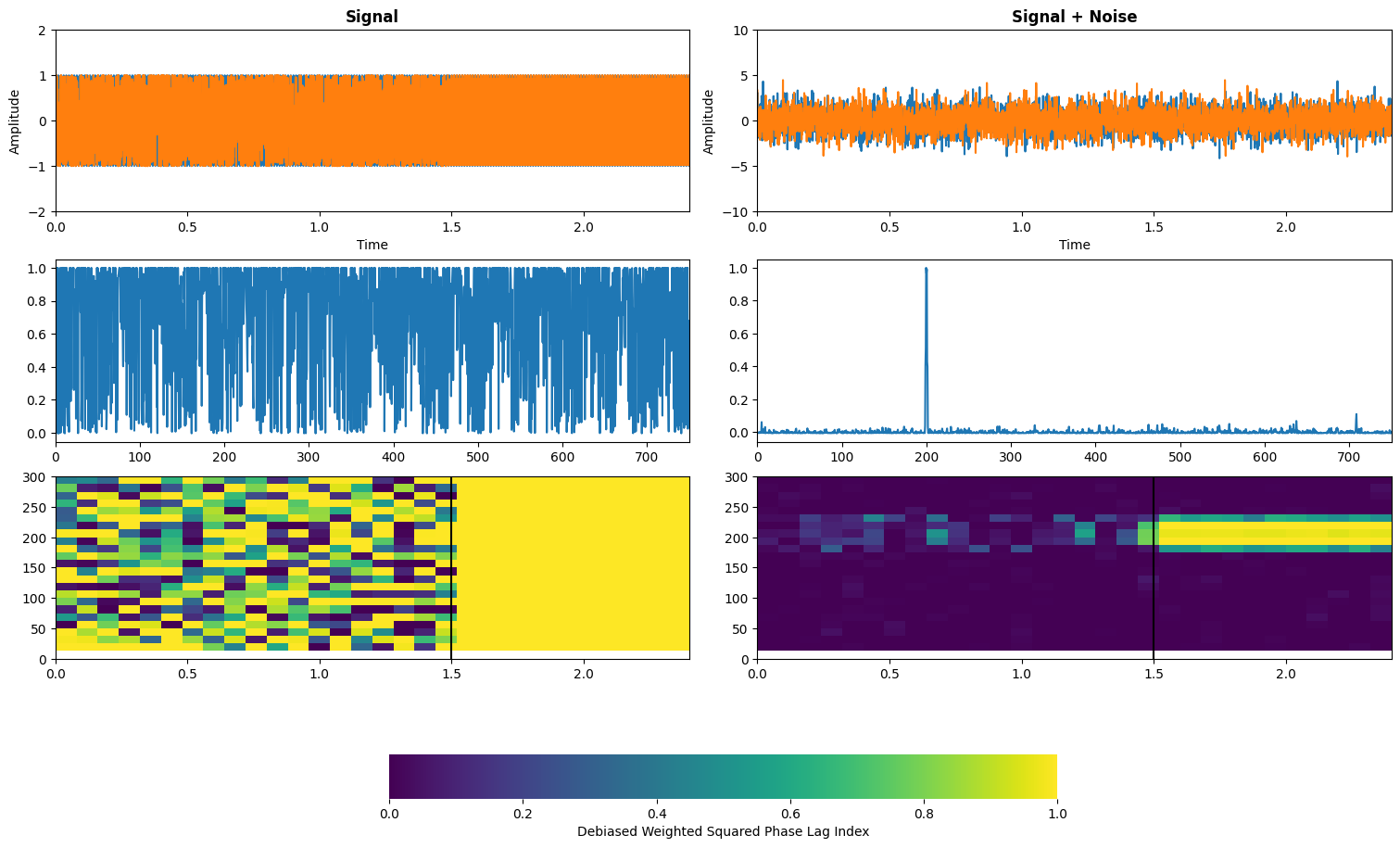

Debiased Squared Weighted Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Debiased Weighted Squared Phase Lag Index",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0
Pairwise Phase Consistency#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
signal,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Pairwise Phase Consistency",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
frequency resolution: 50.0
Group Delay#
Signal #1 leads Signal #2#
import scipy
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
axis_handles[4, 0].set_xticks([1])
axis_handles[4, 0].set_xticklabels(["x1 → x2"])
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
axis_handles[4, 1].set_xticks([1])
axis_handles[4, 1].set_xticklabels(["x1 → x2"])
[Text(1, 0, 'x1 → x2')]

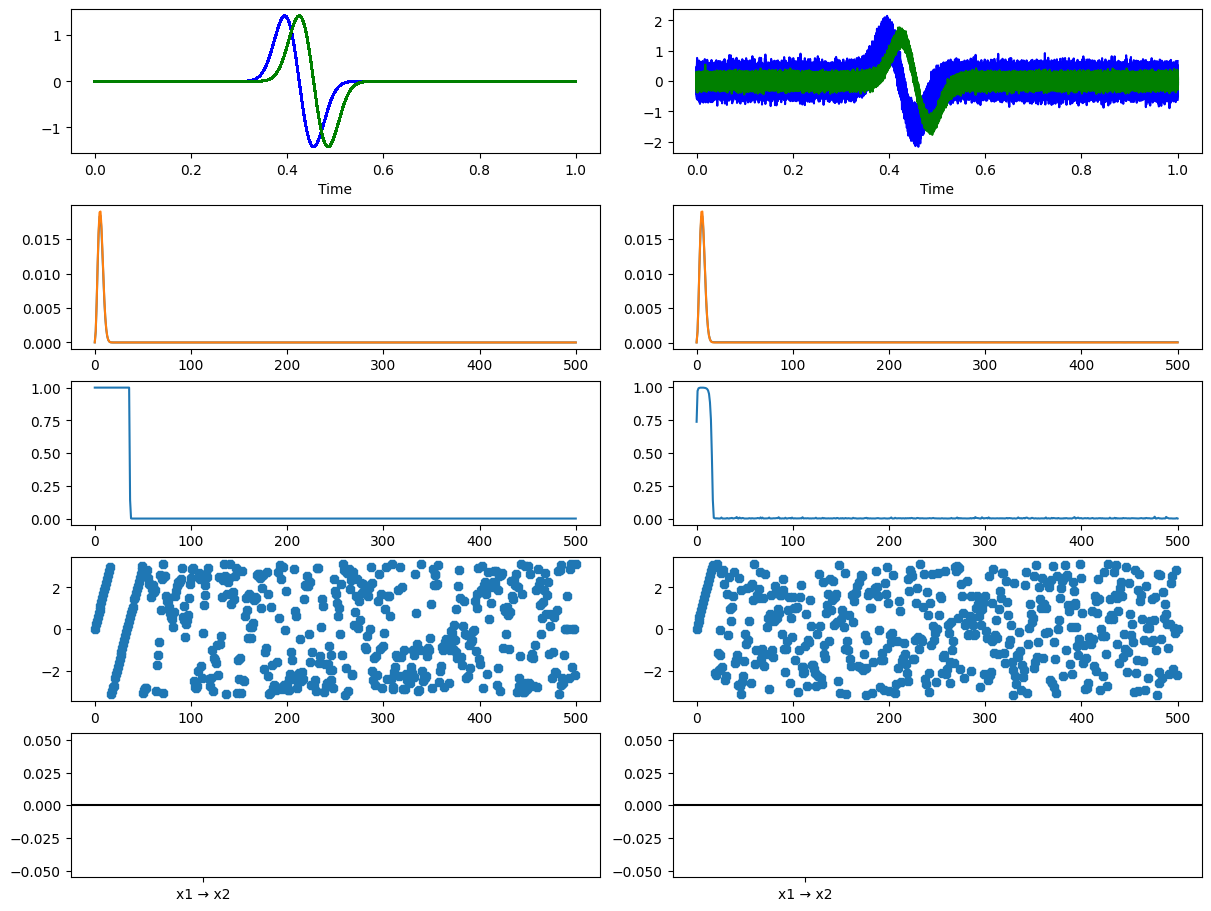

Signal #2 leads Signal #1#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
axis_handles[4, 0].set_xticks([1])
axis_handles[4, 0].set_xticklabels(["x1 → x2"])
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
axis_handles[4, 1].set_xticks([1])
axis_handles[4, 1].set_xticklabels(["x1 → x2"])
[Text(1, 0, 'x1 → x2')]

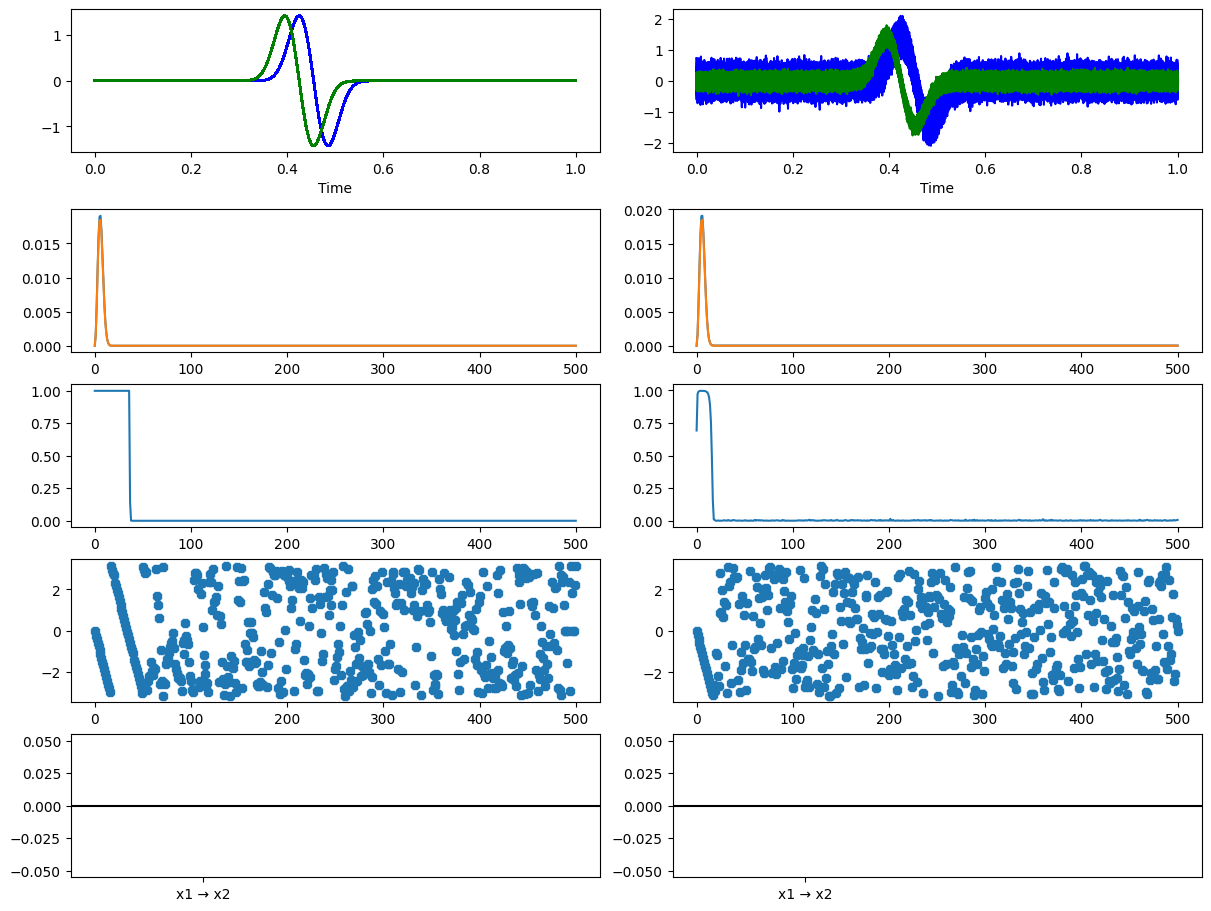

Signal #2 leads Signal #1 over time#
sampling_frequency = 1000
time_extent = (0, 2)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(2, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 0].set_xlim(time_extent)
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
axis_handles[0, 1].set_xlim(time_extent)
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 0].plot(
connectivity.time + multitaper.time_window_duration / 2, delay[..., 0, 1]
)
axis_handles[1, 0].set_xlim(time_extent)
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 1].plot(
connectivity.time + multitaper.time_window_duration / 2, delay[..., 0, 1]
)
axis_handles[1, 1].set_xlim(time_extent)
(0.0, 2.0)

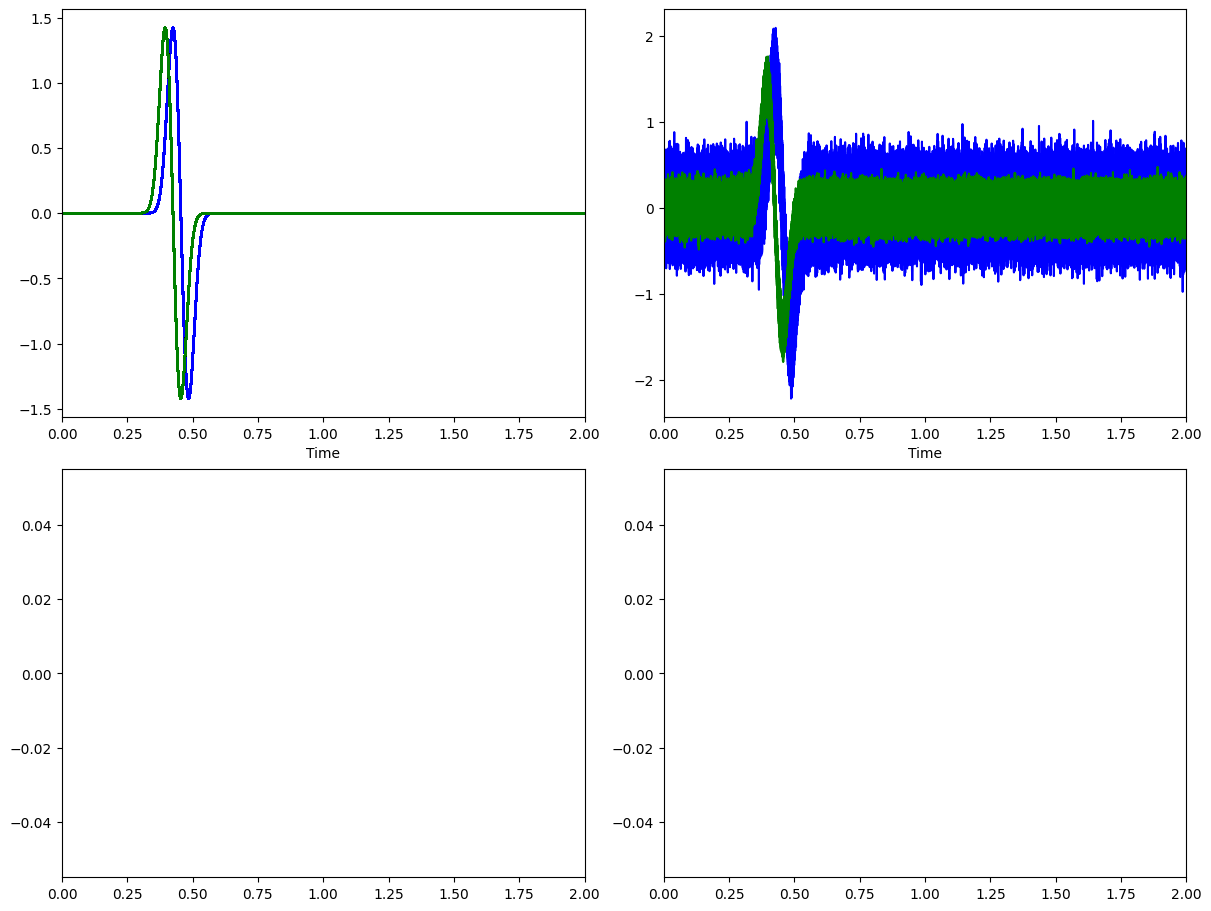

Phase Slope Index#
Signal #1 leads Signal #2#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
<matplotlib.lines.Line2D at 0x7f85d06a1490>

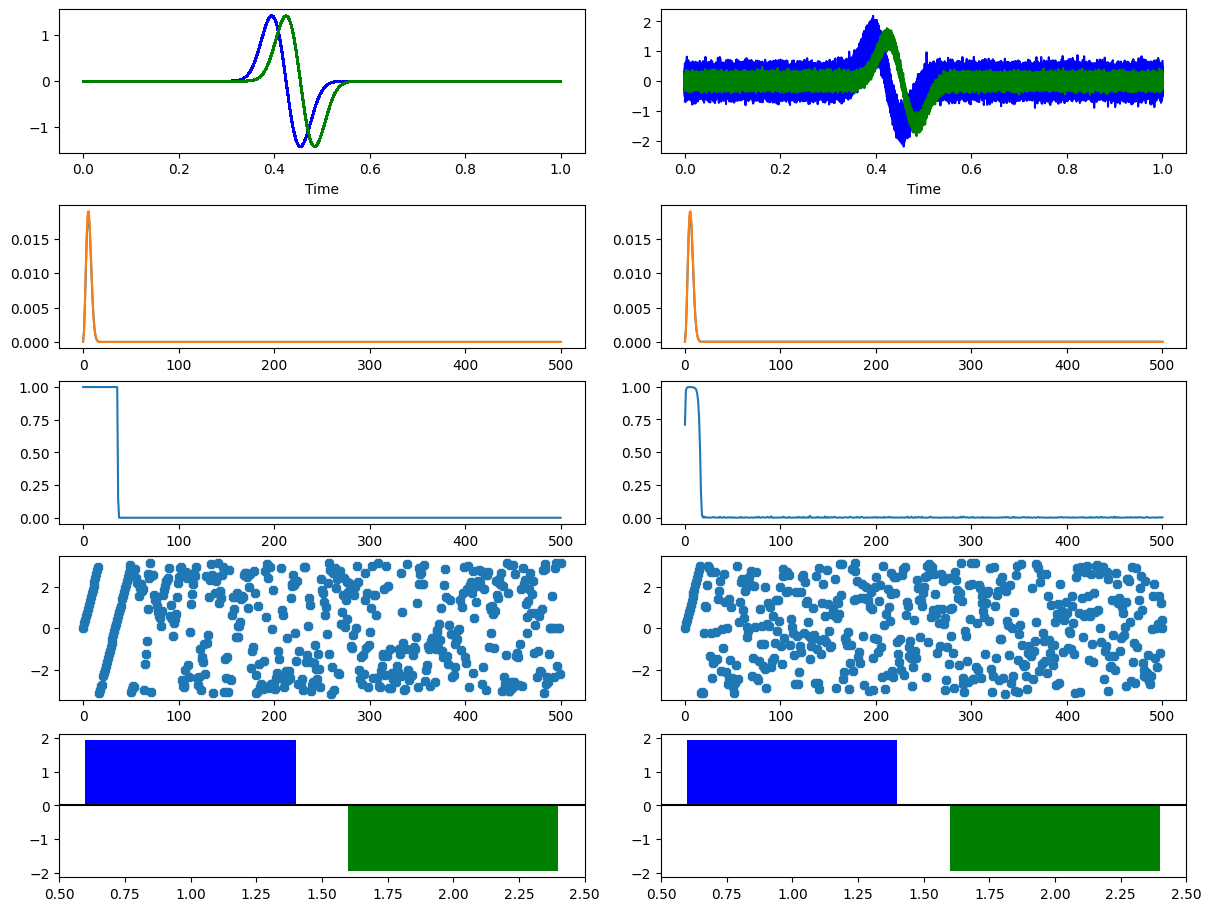

Signal #2 leads Signal #1#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
<matplotlib.lines.Line2D at 0x7f85d23ee950>

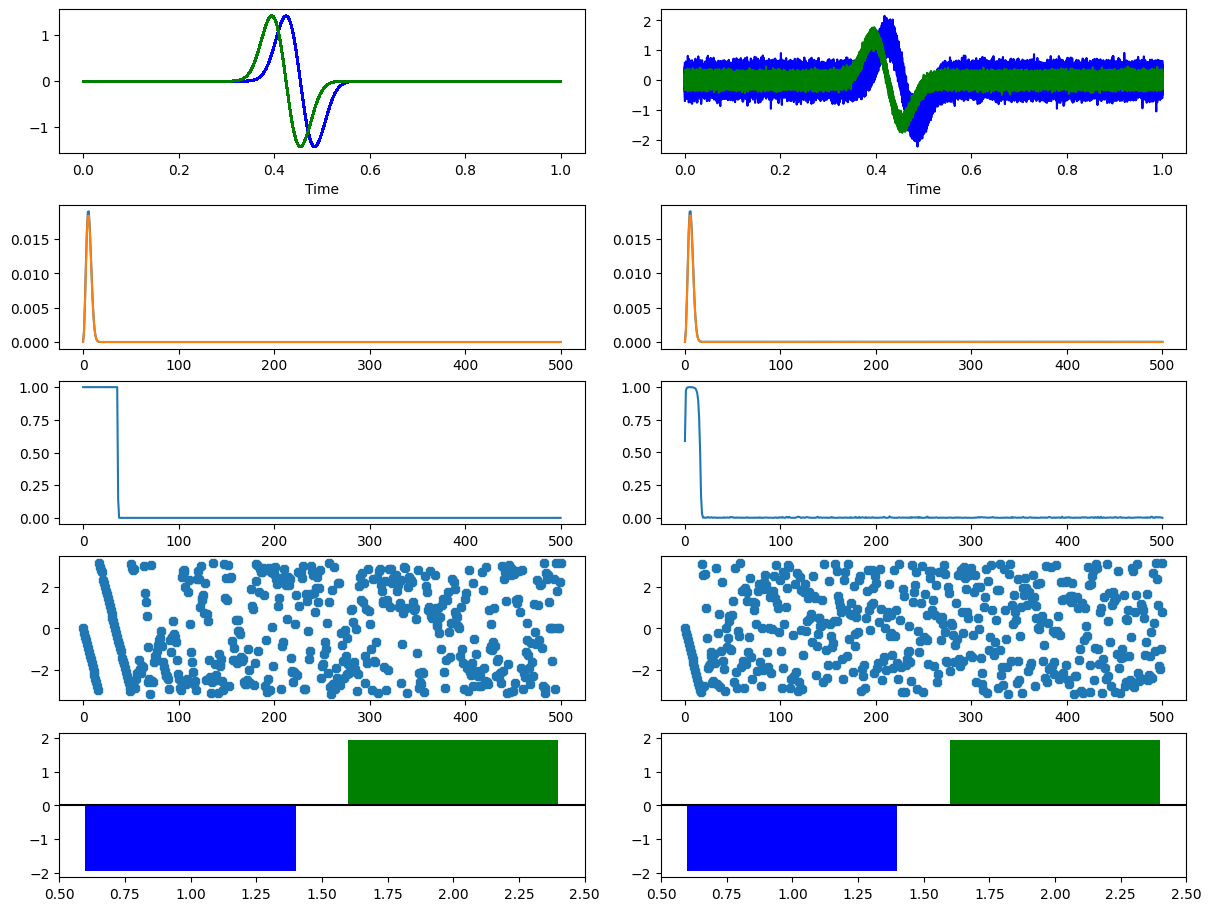

sampling_frequency = 1000
time_extent = (0, 2)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(
2, 2, figsize=(12, 9), constrained_layout=True, sharex=True
)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_title("Signals")
axis_handles[0, 0].set_xlim(time_extent)
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_title("Signals")
axis_handles[0, 1].set_xlim(time_extent)
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 0].plot(
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 0, 1],
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 1, 0],
)
axis_handles[1, 0].set_xlim(time_extent)
axis_handles[1, 0].set_xlabel("Time [s]")
axis_handles[1, 0].set_ylabel("Phase Slope Index")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 1].plot(
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 0, 1],
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 1, 0],
)
axis_handles[1, 1].set_xlim(time_extent)
axis_handles[1, 1].set_xlabel("Time [s]")
axis_handles[1, 1].set_ylabel("Phase Slope Index")
Text(0, 0.5, 'Phase Slope Index')

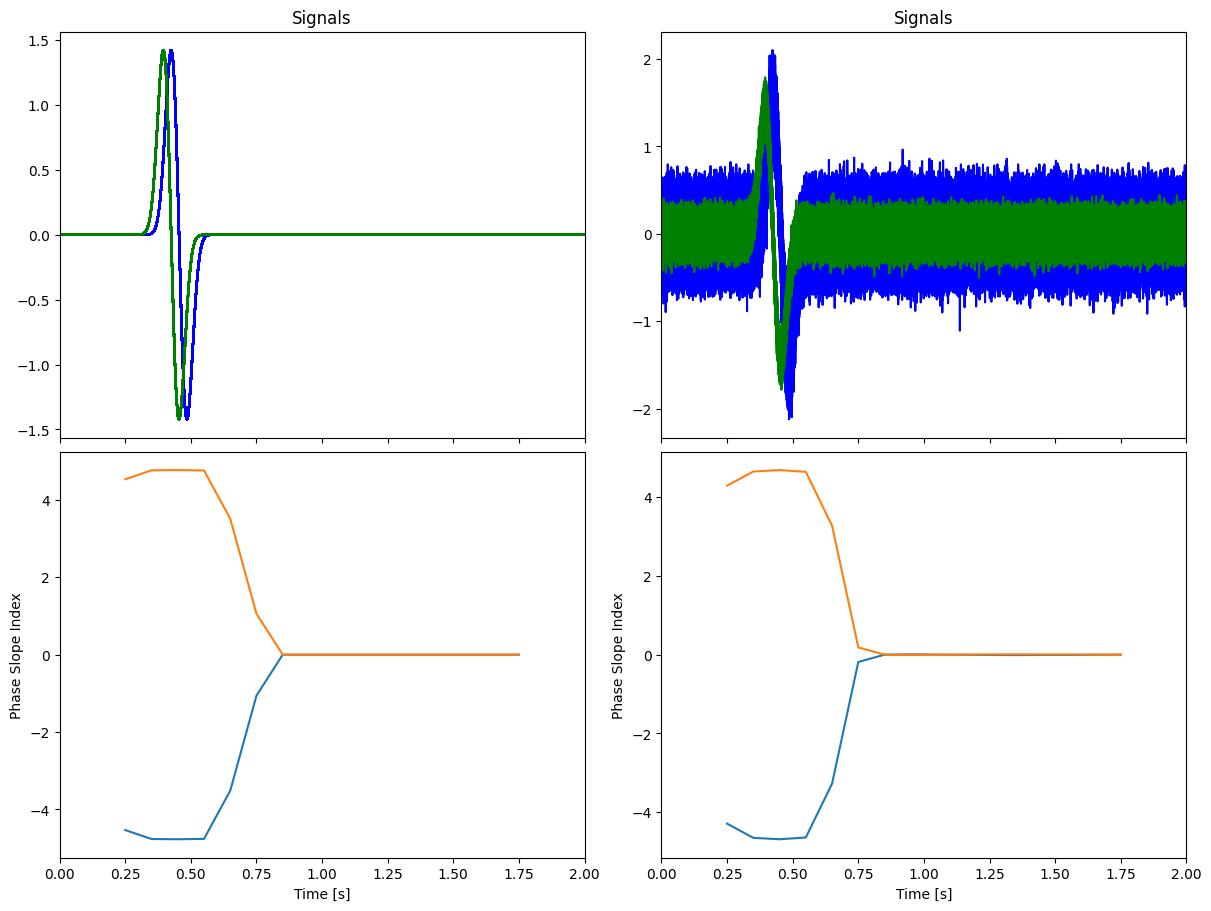

Canonical Coherence#
The advantage of canonical coherence is that it can be more statistically powerful than coherence because it is combining coherence from groups.
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 4
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(0, 4, signal.shape)
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
fig, axes = plt.subplots(nrows=n_signals, ncols=n_signals, figsize=(15, 9))
meshes = list()
for ind1, ind2 in product(range(n_signals), range(n_signals)):
if ind1 == ind2:
vmin, vmax = connectivity.power().min(), connectivity.power().max()
else:
vmin, vmax = 0, 0.5
mesh = axes[ind1, ind2].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., ind1, ind2].squeeze().T,
vmin=vmin,
vmax=vmax,
cmap="viridis",
)
meshes.append(mesh)
axes[ind1, ind2].set_ylim((0, 300))
axes[ind1, ind2].set_xlim(time_extent)
axes[ind1, ind2].axvline(1.5, color="black")
plt.suptitle("Coherence", y=1.02, fontsize=30)
plt.tight_layout()
cb = fig.colorbar(
meshes[-2],
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)

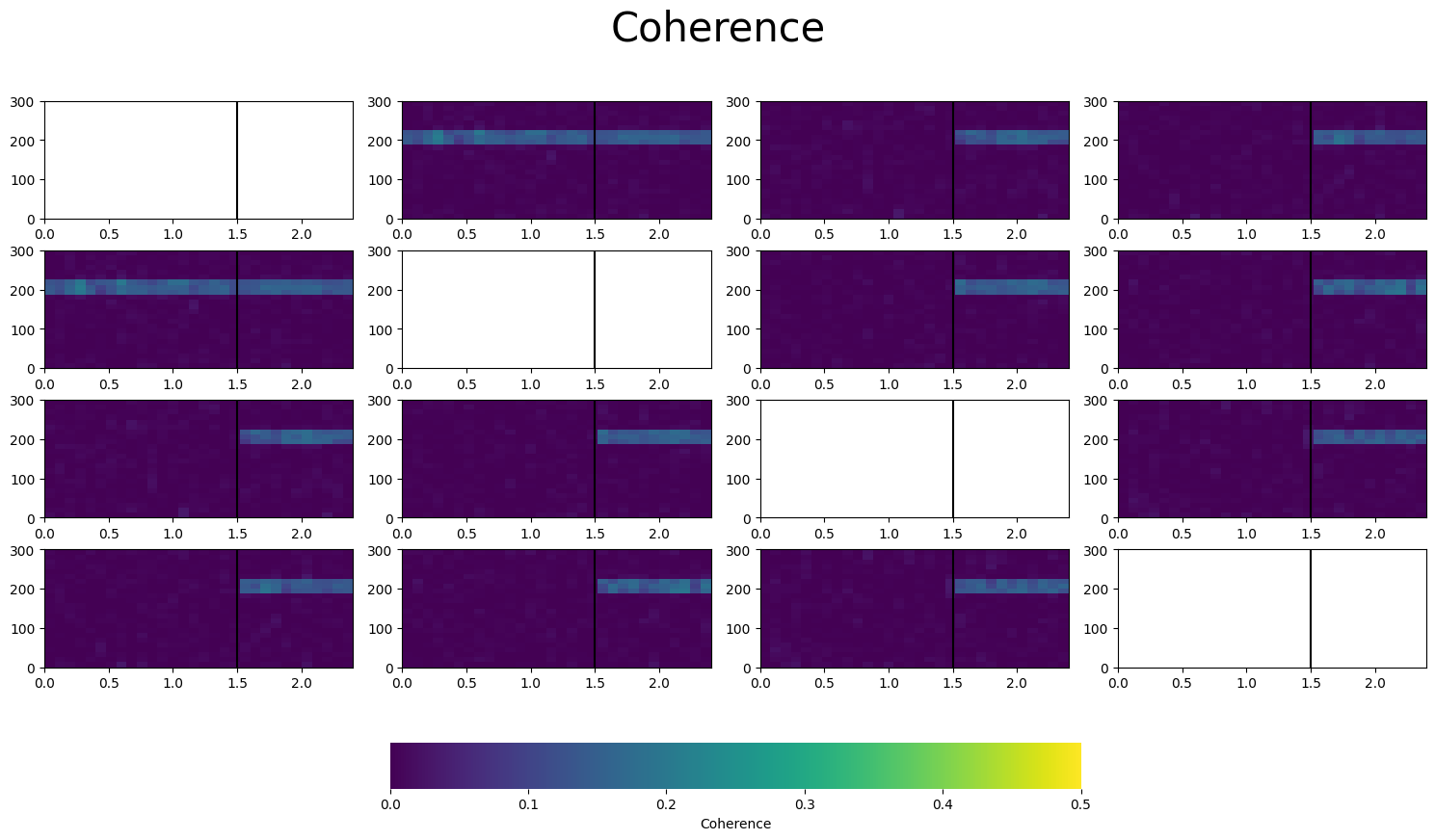

print("frequency resolution: {}".format(multitaper.frequency_resolution))
group_labels = (["a"] * (n_signals - n_other_signals)) + (["b"] * n_other_signals)
canonical_coherence, pair_labels = connectivity.canonical_coherence(group_labels)
fig = plt.figure()
mesh = plt.pcolormesh(
time_grid,
freq_grid,
canonical_coherence[..., 0, 1].squeeze().T,
vmin=0,
vmax=0.5,
cmap="viridis",
)
plt.suptitle("Canonical Coherence", y=1.02, fontsize=30)
cb = fig.colorbar(
mesh,
ax=plt.gca(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)

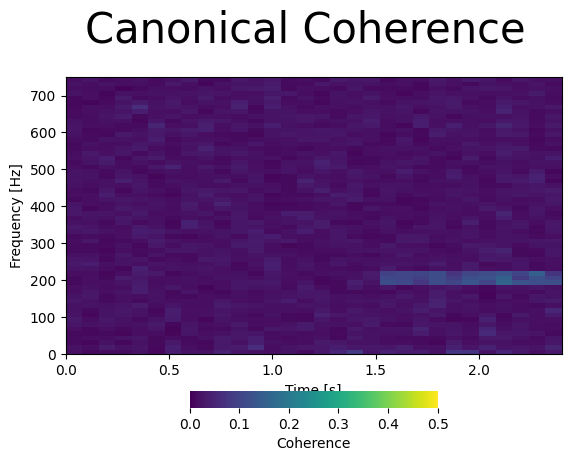

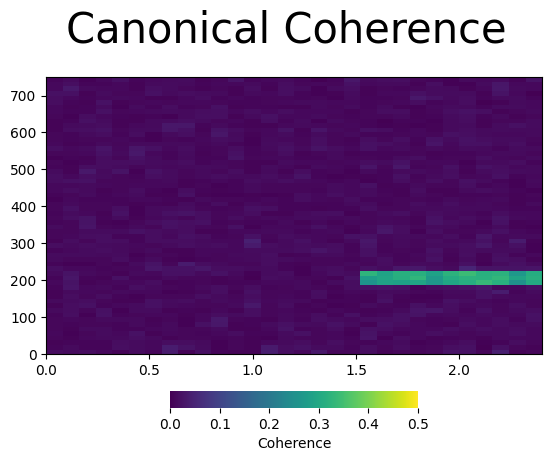

frequency resolution: 50.0

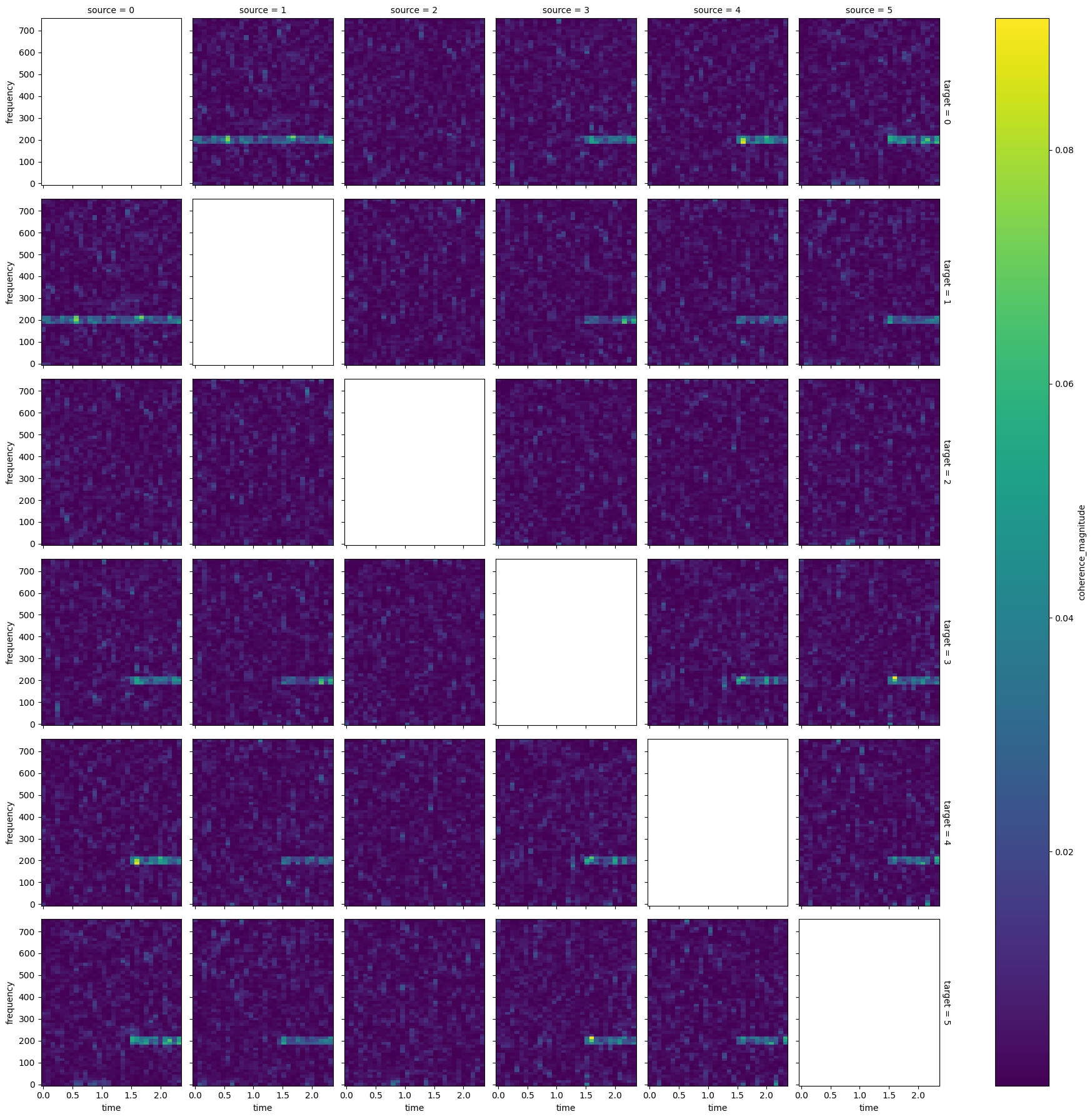

More signals, higher noise#
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 6
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(10, 7, signal.shape)
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
fig, axes = plt.subplots(nrows=n_signals, ncols=n_signals, figsize=(15, 9))
meshes = list()
for ind1, ind2 in product(range(n_signals), range(n_signals)):
if ind1 == ind2:
vmin, vmax = connectivity.power().min(), connectivity.power().max()
else:
vmin, vmax = 0, 0.5
mesh = axes[ind1, ind2].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., ind1, ind2].squeeze().T,
vmin=vmin,
vmax=vmax,
cmap="viridis",
)
meshes.append(mesh)
axes[ind1, ind2].set_ylim((0, 300))
axes[ind1, ind2].set_xlim(time_extent)
axes[ind1, ind2].axvline(1.5, color="black")
plt.suptitle("Coherence", y=1.02, fontsize=30)
plt.tight_layout()
cb = fig.colorbar(
meshes[-2],
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
print("frequency resolution: {}".format(multitaper.frequency_resolution))
group_labels = (["a"] * (n_signals - n_other_signals)) + (["b"] * n_other_signals)
canonical_coherence, pair_labels = connectivity.canonical_coherence(group_labels)
fig = plt.figure()
mesh = plt.pcolormesh(
time_grid,
freq_grid,
canonical_coherence[..., 0, 1].squeeze().T,
vmin=0,
vmax=0.5,
cmap="viridis",
)
plt.xlabel("Time [s]")
plt.ylabel("Frequency [Hz]")
plt.suptitle("Canonical Coherence", y=1.02, fontsize=30)
cb = fig.colorbar(
mesh,
ax=plt.gca(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
frequency resolution: 50.0
Global Coherence#
Global coherence finds the linear combinations of signals that maximizes the power at a given frequency.
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 6
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(10, 7, signal.shape)
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
global_coherence, unnormalized_global_coherence = connectivity.global_coherence()
global_coherence.shape # n_time, n_frequencies, n_components
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
plt.figure()
plt.pcolormesh(
time_grid,
freq_grid,
global_coherence[:, connectivity.all_frequencies >= 0, 0].T,
shading="auto",
)
plt.title("Global Coherence (1st component)")
plt.xlabel("Time [s]")
plt.ylabel("Frequency [Hz]")
Text(0, 0.5, 'Frequency [Hz]')

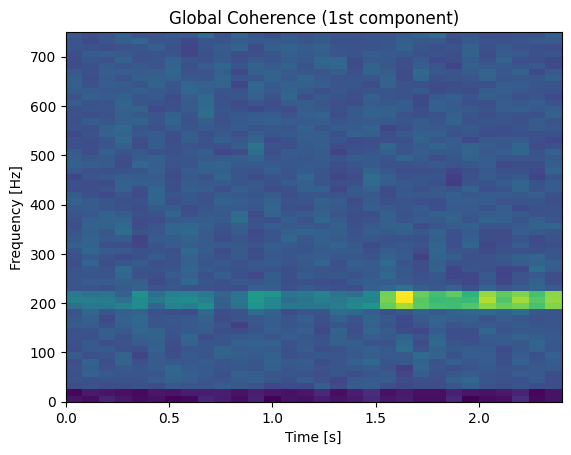

Xarray interface#
The xarray interface provides three things:
a nicely labeled output for the connectivity dimensions
a unified way of estimating the spectral power and connectivity together.
easy and quick plotting
coherence_magnitude = multitaper_connectivity(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
method="coherence_magnitude",
)
coherence_magnitude
<xarray.DataArray 'coherence_magnitude' (time: 30, frequency: 60, source: 6, target: 6)>
array([[[[ nan, 3.24883971e-05, 6.01434818e-03,
5.57188345e-03, 9.17168373e-05, 1.72274557e-04],
[3.24883971e-05, nan, 1.30134735e-03,
1.59691669e-02, 3.36259188e-05, 1.10017203e-03],
[6.01434818e-03, 1.30134735e-03, nan,
9.29906909e-04, 2.44317125e-02, 1.40496768e-04],
[5.57188345e-03, 1.59691669e-02, 9.29906909e-04,
nan, 2.35748888e-03, 2.01723471e-03],
[9.17168373e-05, 3.36259188e-05, 2.44317125e-02,
2.35748888e-03, nan, 2.94159387e-04],
[1.72274557e-04, 1.10017203e-03, 1.40496768e-04,
2.01723471e-03, 2.94159387e-04, nan]],
[[ nan, 1.61053848e-04, 2.69351657e-03,
7.64195617e-04, 6.03348727e-03, 2.57903467e-03],
[1.61053848e-04, nan, 4.13250013e-03,
4.86608885e-03, 2.43176452e-04, 2.65035113e-03],
[2.69351657e-03, 4.13250013e-03, nan,
6.88693524e-04, 6.06599524e-03, 1.44853687e-03],
[7.64195617e-04, 4.86608885e-03, 6.88693524e-04,
...
1.68564798e-02, 1.72549981e-04, 7.77716386e-04],
[5.47199339e-04, 1.18339701e-03, 1.68564798e-02,
nan, 5.55590788e-03, 5.31730336e-04],
[4.12328939e-03, 2.25997963e-03, 1.72549981e-04,
5.55590788e-03, nan, 5.93100382e-04],
[3.83845472e-03, 1.15517759e-02, 7.77716386e-04,
5.31730336e-04, 5.93100382e-04, nan]],
[[ nan, 2.21657307e-03, 1.08844284e-03,
3.75917275e-04, 4.86017234e-04, 8.13804399e-03],
[2.21657307e-03, nan, 1.01363805e-03,
8.08524044e-03, 1.02098543e-03, 1.21906905e-02],
[1.08844284e-03, 1.01363805e-03, nan,
1.68049392e-02, 1.84173575e-03, 1.00412214e-03],
[3.75917275e-04, 8.08524044e-03, 1.68049392e-02,
nan, 1.01010892e-02, 3.08686259e-04],
[4.86017234e-04, 1.02098543e-03, 1.84173575e-03,
1.01010892e-02, nan, 4.16935722e-03],
[8.13804399e-03, 1.21906905e-02, 1.00412214e-03,
3.08686259e-04, 4.16935722e-03, nan]]]])
Coordinates:
* time (time) float64 0.0 0.08 0.16 0.24 0.32 ... 2.08 2.16 2.24 2.32
* frequency (frequency) float64 0.0 12.5 25.0 37.5 ... 712.5 725.0 737.5
* source (source) int64 0 1 2 3 4 5
* target (target) int64 0 1 2 3 4 5
Attributes: (12/15)
mt_detrend_type: constant
mt_frequency_resolution: 50.0
mt_is_low_bias: True
mt_n_fft_samples: 120
mt_n_signals: 6
mt_n_tapers: 3
... ...
mt_nyquist_frequency: 750.0
mt_sampling_frequency: 1500
mt_start_time: 0
mt_time_halfbandwidth_product: 2
mt_time_window_duration: 0.08
mt_time_window_step: 0.08xarray.DataArray
'coherence_magnitude'
- time: 30
- frequency: 60
- source: 6
- target: 6
- nan 3.249e-05 0.006014 0.005572 ... 0.001004 0.0003087 0.004169 nan
array([[[[ nan, 3.24883971e-05, 6.01434818e-03, 5.57188345e-03, 9.17168373e-05, 1.72274557e-04], [3.24883971e-05, nan, 1.30134735e-03, 1.59691669e-02, 3.36259188e-05, 1.10017203e-03], [6.01434818e-03, 1.30134735e-03, nan, 9.29906909e-04, 2.44317125e-02, 1.40496768e-04], [5.57188345e-03, 1.59691669e-02, 9.29906909e-04, nan, 2.35748888e-03, 2.01723471e-03], [9.17168373e-05, 3.36259188e-05, 2.44317125e-02, 2.35748888e-03, nan, 2.94159387e-04], [1.72274557e-04, 1.10017203e-03, 1.40496768e-04, 2.01723471e-03, 2.94159387e-04, nan]], [[ nan, 1.61053848e-04, 2.69351657e-03, 7.64195617e-04, 6.03348727e-03, 2.57903467e-03], [1.61053848e-04, nan, 4.13250013e-03, 4.86608885e-03, 2.43176452e-04, 2.65035113e-03], [2.69351657e-03, 4.13250013e-03, nan, 6.88693524e-04, 6.06599524e-03, 1.44853687e-03], [7.64195617e-04, 4.86608885e-03, 6.88693524e-04, ... 1.68564798e-02, 1.72549981e-04, 7.77716386e-04], [5.47199339e-04, 1.18339701e-03, 1.68564798e-02, nan, 5.55590788e-03, 5.31730336e-04], [4.12328939e-03, 2.25997963e-03, 1.72549981e-04, 5.55590788e-03, nan, 5.93100382e-04], [3.83845472e-03, 1.15517759e-02, 7.77716386e-04, 5.31730336e-04, 5.93100382e-04, nan]], [[ nan, 2.21657307e-03, 1.08844284e-03, 3.75917275e-04, 4.86017234e-04, 8.13804399e-03], [2.21657307e-03, nan, 1.01363805e-03, 8.08524044e-03, 1.02098543e-03, 1.21906905e-02], [1.08844284e-03, 1.01363805e-03, nan, 1.68049392e-02, 1.84173575e-03, 1.00412214e-03], [3.75917275e-04, 8.08524044e-03, 1.68049392e-02, nan, 1.01010892e-02, 3.08686259e-04], [4.86017234e-04, 1.02098543e-03, 1.84173575e-03, 1.01010892e-02, nan, 4.16935722e-03], [8.13804399e-03, 1.21906905e-02, 1.00412214e-03, 3.08686259e-04, 4.16935722e-03, nan]]]]) - time(time)float640.0 0.08 0.16 ... 2.16 2.24 2.32
array([0. , 0.08, 0.16, 0.24, 0.32, 0.4 , 0.48, 0.56, 0.64, 0.72, 0.8 , 0.88, 0.96, 1.04, 1.12, 1.2 , 1.28, 1.36, 1.44, 1.52, 1.6 , 1.68, 1.76, 1.84, 1.92, 2. , 2.08, 2.16, 2.24, 2.32]) - frequency(frequency)float640.0 12.5 25.0 ... 712.5 725.0 737.5
array([ 0. , 12.5, 25. , 37.5, 50. , 62.5, 75. , 87.5, 100. , 112.5, 125. , 137.5, 150. , 162.5, 175. , 187.5, 200. , 212.5, 225. , 237.5, 250. , 262.5, 275. , 287.5, 300. , 312.5, 325. , 337.5, 350. , 362.5, 375. , 387.5, 400. , 412.5, 425. , 437.5, 450. , 462.5, 475. , 487.5, 500. , 512.5, 525. , 537.5, 550. , 562.5, 575. , 587.5, 600. , 612.5, 625. , 637.5, 650. , 662.5, 675. , 687.5, 700. , 712.5, 725. , 737.5]) - source(source)int640 1 2 3 4 5
array([0, 1, 2, 3, 4, 5])
- target(target)int640 1 2 3 4 5
array([0, 1, 2, 3, 4, 5])
- mt_detrend_type :
- constant
- mt_frequency_resolution :
- 50.0
- mt_is_low_bias :
- True
- mt_n_fft_samples :
- 120
- mt_n_signals :
- 6
- mt_n_tapers :
- 3
- mt_n_time_samples_per_step :
- 120
- mt_n_time_samples_per_window :
- 120
- mt_n_trials :
- 100
- mt_nyquist_frequency :
- 750.0
- mt_sampling_frequency :
- 1500
- mt_start_time :
- 0
- mt_time_halfbandwidth_product :
- 2
- mt_time_window_duration :
- 0.08
- mt_time_window_step :
- 0.08
coherence_magnitude.plot(col="source", row="target", x="time")
<xarray.plot.facetgrid.FacetGrid at 0x7f8611c58910>
