Tutorial#
The spectral_connectivity
package has two main classes used for computation:
Multitaper
Connectivity
.
There is also a function called multitaper_connectivity
which combines the usage of the two classes and outputs a labeled array, which can be convenient for understanding the output and plotting.
This tutorial will walk you through the usage of each.
Multitaper#
Multitaper
is used to compute the multitaper Fourier transform of a set of signals. It returns Fourier coefficients that can subsequently be used by the Connectivity
class to compute frequency-domain metrics on the signals such as power and coherence.
Let’s simulate a set of signals and see how to use the Multitaper
class. We simulate two signals (signal
) which oscillate at 200 Hz and are offset in phase by \(\frac{\pi}{2}\). We also simulate some white noise to add to the signal (noise
). We want to compute the multitaper Fourier transform of these two signals.
import numpy as np
frequency_of_interest = 200
sampling_frequency = 1000
time_extent = (0, 60)
n_signals = 2
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
# Signal 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_signals))
signal[:, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
# Signal 2
phase_offset = np.pi / 2
signal[:, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 4, signal.shape)
We can plot these two signals with and without the noise added:
import matplotlib.pyplot as plt
fig, axes = plt.subplots(2, 1, figsize=(15, 6))
axes[0].set_title("Signal", fontweight="bold")
axes[0].plot(time, signal[:, 0], label="Signal1")
axes[0].plot(time, signal[:, 1], label="Signal2")
axes[0].set_xlabel("Time")
axes[0].set_ylabel("Amplitude")
axes[0].set_xlim((0.95, 1.05))
axes[0].set_ylim((-10, 10))
axes[0].legend()
axes[1].set_title("Signal + Noise", fontweight="bold")
axes[1].plot(time, signal + noise)
axes[1].set_xlabel("Time")
axes[1].set_ylabel("Amplitude")
axes[1].set_xlim((0.95, 1.05))
axes[1].set_ylim((-10, 10))
(-10.0, 10.0)
Now let’s import the Multitaper
class and see how to use it. From the docstring, we can see there are a number of inputs to the class. We will walk through the most important of these inputs.
from spectral_connectivity import Multitaper
Multitaper?
Init signature:
Multitaper(
time_series,
sampling_frequency=1000,
time_halfbandwidth_product=3,
detrend_type='constant',
time_window_duration=None,
time_window_step=None,
n_tapers=None,
tapers=None,
start_time=0,
n_fft_samples=None,
n_time_samples_per_window=None,
n_time_samples_per_step=None,
is_low_bias=True,
)
Docstring:
Transform time-domain signal(s) to the frequency domain by using
multiple tapering windows.
Attributes
----------
time_series : array, shape (n_time_samples, n_trials, n_signals) or
(n_time_samples, n_signals)
sampling_frequency : float, optional
Number of samples per time unit the signal(s) are recorded at.
time_halfbandwidth_product : float, optional
Specifies the time-frequency tradeoff of the tapers and also the number
of tapers if `n_tapers` is not set.
detrend_type : string or None, optional
Subtracting a constant or a linear trend from each time window. If None
then no detrending is done.
start_time : float, optional
Start time of time series.
time_window_duration : float, optional
Duration of sliding window in which to compute the fft. Defaults to
the entire time if not set.
time_window_step : float, optional
Duration of time to skip when moving the window forward. By default,
this equals the duration of the time window.
tapers : array, optional, shape (n_time_samples_per_window, n_tapers)
Pass in a pre-computed set of tapers. If `None`, then the tapers are
automically calculated based on the `time_halfbandwidth_product`,
`n_tapers`, and `n_time_samples_per_window`.
n_tapers : int, optional
Set the number of tapers. If `None`, the number of tapers is computed
by 2 * `time_halfbandwidth_product` - 1.
n_time_samples_per_window : int, optional
Number of samples in each sliding window. If `time_window_duration` is
set, then this is calculated automically.
n_time_samples_per_step : int, optional
Number of samples to skip when moving the window forward. If
`time_window_step` is set, then this is calculated automically.
is_low_bias : bool, optional
If `True`, excludes tapers with eigenvalues < 0.9
Init docstring:
_summary_
Parameters
----------
time_series : array, shape (n_time_samples, n_trials, n_signals) or (n_time_samples, n_signals)
sampling_frequency : float, optional
Number of samples per time unit the signal(s) are recorded at.
time_halfbandwidth_product : float, optional
Specifies the time-frequency tradeoff of the tapers and also the number
of tapers if `n_tapers` is not set.
detrend_type : string or None, optional
Subtracting a constant or a linear trend from each time window. If None
then no detrending is done.
start_time : float, optional
Start time of time series.
time_window_duration : float, optional
Duration of sliding window in which to compute the fft. Defaults to
the entire time if not set.
time_window_step : float, optional
Duration of time to skip when moving the window forward. By default,
this equals the duration of the time window.
tapers : array, optional, shape (n_time_samples_per_window, n_tapers)
Pass in a pre-computed set of tapers. If `None`, then the tapers are
automically calculated based on the `time_halfbandwidth_product`,
`n_tapers`, and `n_time_samples_per_window`.
n_tapers : int, optional
Set the number of tapers. If `None`, the number of tapers is computed
by 2 * `time_halfbandwidth_product` - 1.
n_time_samples_per_window : int, optional
Number of samples in each sliding window. If `time_window_duration` is
set, then this is calculated automically.
n_time_samples_per_step : int, optional
Number of samples to skip when moving the window forward. If
`time_window_step` is set, then this is calculated automically.
is_low_bias : bool, optional
If `True`, excludes tapers with eigenvalues < 0.9
File: ~/Documents/GitHub/spectral_connectivity/spectral_connectivity/transforms.py
Type: type
Subclasses:
time_series#
The most important input is time_series
. This array is what gets transformed into the frequency domain. The order of dimensions of time_series
are critical for how the data is processed. The array can either have two or three dimensions.
If the array has two dimensions, then dimension 1 is time
and dimensions 2 is signals
. This is how our simulated signal is arranged. We have 50001 samples in the time dimension and 2 signals:
signal.shape
(60001, 2)
If we have three dimensions, dimension 1 is time
, dimension 2 is trials
, and dimensions 3 is signals
. It is important to know note that dimension 2 now has a different meaning in that it represents trials and not signals now. Dimension 3 is now the signals dimension. We will show an example of this later.
sampling_frequency#
The next most important input is the sampling_frequency
. The sampling_frequency
is the number of samples per time unit the signal(s) are recorded at. This is set by default to 1000 samples per second. If your signal is sampled at a different rate, this needs to be set. In our simulated signal, we have sampled time at 1000 samples per second:
sampling_frequency
1000
time_halfbandwidth_product#
The time_halfbandwidth_product
controls the frequency resolution of the Fourier transformed signal. It is equal to the duration of the time window multiplied by the half of the frequency resolution desired (the so-called half bandwidth). Remember that the frequency resolution is the number of consecutive frequencies that can be distinguished. So 2 Hz frequency resolution (which has a 1 Hz half bandwidth) means that we can tell the difference between 9 Hz and 11 Hz, but not 10 Hz.
Setting this parameter will define the default number of tapers used in the transform (number of tapers = 2 * time_halfbandwidth_product
- 1.).
It is outside the scope of this tutorial to fully explain multitaper analysis, but a good introduction can be found in the book: Case Studies in Neural Data Analysis.
time_window_duration and time_window_step#
The time_window_duration
controls the duration of the segment of time the transformation is computed on. This is specified in seconds and automatically set to the entire length of the signal(s) if it is not specified. For example, if you want to compute a spectrogram, you need to set the time_window_duration
to something smaller than the length of the signal(s). Note that setting this will affect the frequency resolution as it is part of the calculation of the time_halfbandwidth_product
(see above).
The time_window_step
control how far the time window is slid. By default, the time window is set to slide the length of the time_window_duration so that each time window is non-overlapping (approximately independent). Setting the step to smaller than the time window duration will make the time windows overlap, so they will be dependent.
Using Multitaper#
Now that we know some of the inputs to Multitaper
, let’s see how to use it. We will give the class a noisy signal (signal + noise
), the sampling frequency (sampling_frequency
) which we used to simulate the signals and set the time_halfbandwidth_product
to 5:
multitaper = Multitaper(
signal + noise, sampling_frequency=sampling_frequency, time_halfbandwidth_product=5
)
multitaper
Multitaper(sampling_frequency=1000, time_halfbandwidth_product=5,
time_window_duration=60.001, time_window_step=60.001,
detrend_type='constant', start_time=0, n_tapers=9)
We can see that instantiating the class into the variable (multitaper
) automatically computed some properties. For example, we can look at time_window_duration
and time_window_step
, which both will be the length of the entire signal because we did not specify a shorter duration:
multitaper.time_window_duration
60.001
multitaper.time_window_step
60.001
We can also look at the frequency resolution (which is determined by the time_halfbandwidth_product
and the time_window_duration
).
NOTE: The bandwidth is another way to refer to the frequency resolution.
multitaper.frequency_resolution
0.1666638889351844
We can also compute the nyquist frequency, which is the highest resolvable frequency. This is half the sampling frequency.
multitaper.nyquist_frequency
500.0
Note that we haven’t run the tranformation yet. To do this we can use the method fft
to get the Fourier coefficients.
This will have shape (n_time_windows, n_trials, n_tapers, n_fft_samples, n_signals).
fourier_coefficients = multitaper.fft()
fourier_coefficients.shape
(1, 1, 9, 60750, 2)
We can get the time corresponding to each time window (of length n_time_windows
) and the frequencies (of length n_fft_samples
).
multitaper.time
array([0.])
multitaper.frequencies
array([ 0. , 0.01646091, 0.03292181, ..., -0.04938272,
-0.03292181, -0.01646091])
In this case, we have computed the Fourier transform on the entire signal, so we only have a single time corresponding to the beginning of the time window (0.0).
Also note that the frequencies given by the Multitaper class are both positive and negative. This is necessary for certain computations.
Now that we have computed the fft
we have all the ingredients we need to compute the connectivity measures.
The Connectivity class#
The Connectivity
class computes the frequency-domain connectivity measures from the Fourier coeffcients. Let’s import the class and look at the docstring:
from spectral_connectivity import Connectivity
Connectivity?
Init signature:
Connectivity(
fourier_coefficients: numpy.ndarray,
expectation_type: str = 'trials_tapers',
frequencies: numpy.ndarray = None,
time: numpy.ndarray = None,
blocks: int = None,
dtype: numpy.dtype = <class 'numpy.complex128'>,
)
Docstring:
Computes brain connectivity measures based on the cross spectral
matrix.
Note that spectral granger methods that require estimation of transfer function
and noise covariance use minimum phase decomposition [1] to decompose
the cross spectral matrix into square roots, which then can be used to
non-parametrically estimate the transfer function and noise covariance.
Attributes
----------
fourier_coefficients : array, shape (n_time_windows, n_trials, n_tapers, n_fft_samples, n_signals)
The compex-valued coefficients from a fourier transform. Note that
this is expected to be the two-sided fourier coefficients
(both the positive and negative lags). This is needed for the
Granger-based methods to work.
expectation_type : ('trials_tapers' | 'trials' | 'tapers'), optional
How to average the cross spectral matrix. 'trials_tapers' averages
over the trials and tapers dimensions. 'trials' only averages over
the trials dimensions (leaving tapers) and 'tapers' only averages
over tapers (leaving trials).
frequencies : array, shape (n_fft_samples,), optional
Frequency of each sample, by default None
time : np.ndarray, shape (n_time_windows,) optional
Time of each window, by default None
blocks : int, optional
Number of blocks to split up input arrays to do block computation, by default None
dtype : np.dtype, optional
Data type of the fourier coefficients, by default xp.complex128
References
----------
.. [1] Dhamala, M., Rangarajan, G., and Ding, M. (2008). Analyzing
information flow in brain networks with noxparametric Granger
causality. NeuroImage 41, 354-362.
Init docstring:
Parameters
----------
fourier_coefficients : np.ndarray, shape (n_time_windows, n_trials, n_tapers, n_fft_samples, n_signals)
The compex-valued coefficients from a fourier transform. Note that
this is expected to be the two-sided fourier coefficients
(both the positive and negative lags). This is needed for the
Granger-based methods to work.
expectation_type : str, optional
How to average the cross spectral matrix. 'trials_tapers' averages
over the trials and tapers dimensions. 'trials' only averages over
the trials dimensions (leaving tapers) and 'tapers' only averages
over tapers (leaving trials).
frequencies : np.ndarray, shape (n_fft_samples,), optional
Frequency of each sample, by default None
time : np.ndarray, shape (n_time_windows,) optional
Time of each window, by default None
blocks : int, optional
Number of blocks to split up input arrays to do block computation, by default None
dtype : np.dtype, optional
Data type of the fourier coefficients, by default xp.complex128
File: ~/Documents/GitHub/spectral_connectivity/spectral_connectivity/connectivity.py
Type: type
Subclasses:
From the docstring, we can see that the Connectivity class is initialized with the following parameters:
fourier_coefficients
expectation_type
frequencies
,time
blocks
dtype
Of these, we have already computed the fourier_coefficients
, time
, and frequencies
from the Multitaper
class (see last section). We will consider the most important remaining parameters in turn:
expectation_type#
The expectation_type
is perhaps the most important of the parameters to consider. It defines the dimensions of the cross-spectrum that are averaged over. You can average over any combination of:
time
trials
tapers
By default, Connectivity
averages over trials and tapers (trials_tapers
), but depending on your usage, you may want to average over the other dimensions. The dimensions you average over is specified by a string with an underscore (_
) between the dimensions.
Note that the order of the dimensions must be in the order time, trials, and tapers. So if you wish to average over all three, the correct expectation type is time_trials_tapers
and not trials_time_tapers
.
blocks#
The blocks
parameter can help when the computation of the connectivity measures is taking up a large amount of RAM. The computation of the cross-spectral matrix can be large depending on the number of time samples, frequencies, trials and tapers. Therefore it is sometimes useful to simplify this by breaking this computation up into smaller arrays (blocks
). The blocks
parameter controls the number of blocks the matrix is split into. Setting this parameter appropriately is a matter of experimentation, but users should start with the default of 1 and increase it as needed as memory usage becomes a problem.
Using Connectivity#
Okay, now that we understand the parameters, we can now instantiate the class in order to compute the connectivity measures. You can instantiate the class as follows:
connectivity = Connectivity(
fourier_coefficients=multitaper.fft(),
expectation_type="trials_tapers",
frequencies=multitaper.frequencies,
time=multitaper.time,
blocks=1,
)
Alternatively, you can also instantiate the class this way, which is a little more convenient code-wise. Note that in this formulation, you do not call the .fft
method, the class method from_multitaper
does this for you:
connectivity = Connectivity.from_multitaper(multitaper)
We are now ready to compute the connectivity measures. These all exists as function methods on the class. So for instance, if you want to compute the power of the two signals, we would use the power
method:
power = connectivity.power()
power.shape
(1, 30375, 2)
Notice here that only the non-negative frequencies are returned (since for real signals, the power spectrum is symmetric). Also since we didn’t average over time (the expectation_type
is “trials_tapers” by default), it is included in the first dimension. We can get the non-negative frequencies using the frequencies
property. Notice that the shape of the second dimension of power matches:
connectivity.frequencies.shape
(30375,)
We could also average over time here since there is only one time point – the average will have no effect other than to remove the time dimension from the output. Let’s try that here:
connectivity = Connectivity.from_multitaper(
multitaper, expectation_type="time_trials_tapers", blocks=1
)
connectivity.power().shape
(30375, 2)

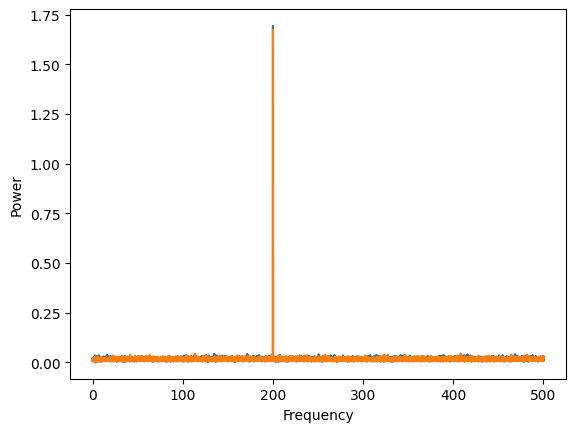

Let’s plot the power of both signals. Remember that we simulated them both to be 200 Hz oscillations, offset by \(\frac{\pi}{2}\) in phase. As expected, the power of both signals is at 200 Hz.
plt.plot(connectivity.frequencies, connectivity.power())
plt.ylabel("Power")
plt.xlabel("Frequency")
Text(0.5, 0, 'Frequency')
Now let’s say we want to compute the coherence, a measure of how stable the phase relationships are between the two signals. We use the coherence_magnitude
method to compute this.
coherence = connectivity.coherence_magnitude()
coherence.shape
(30375, 2, 2)

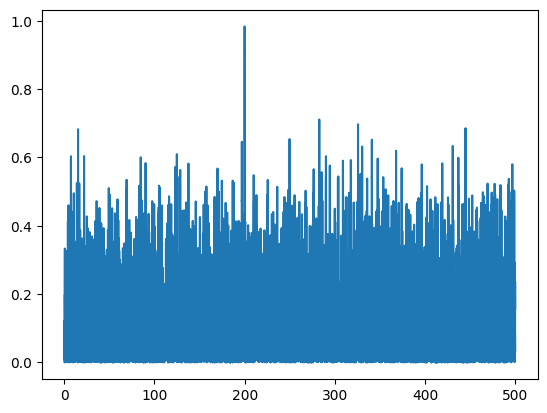

The coherence comes in shape (n_frequencies, n_signals, n_signals). Because it is symmetric, we only have to plot the relationship from signal1 to signal2. We can see that the signal is more coherent at 200 Hz.
plt.plot(connectivity.frequencies, coherence[:, 0, 1])
[<matplotlib.lines.Line2D at 0x7f8a39a70c50>]
Adding in time#
Suppose we want to look at how coherence evolves over time. To do so, we have to go back to the Multitaper
class and specify the time_window_duration
. Here we set it to be 2 seconds. Then we can compute the coherence again from the Connectivity
class.
multitaper = Multitaper(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=5,
time_window_duration=2.0,
)
connectivity = Connectivity.from_multitaper(
multitaper, expectation_type="trials_tapers"
)
coherence = connectivity.coherence_magnitude()
coherence.shape
(30, 1000, 2, 2)
Also note how this changes our frequency resolution.
multitaper.frequency_resolution
5.0

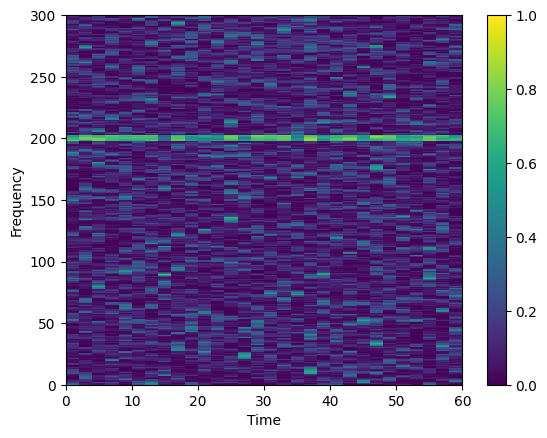

Now we can plot the coherence over time
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = plt.pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
plt.ylim((0, 300))
plt.xlim(time_extent)
plt.xlabel("Time")
plt.ylabel("Frequency")
plt.colorbar()
<matplotlib.colorbar.Colorbar at 0x7f8a0c08d390>
There are a number of other connectivity measures besides coherence. See the other notebooks for examples on how to use them.
multitaper_connectivity#
There is a third option for how to compute the connectivity measures. The output of this option is a labeled array using the xarray package. This can be convenient because one always knows what the dimensions are. In addition, xarray arrays make plotting easy.
Let’s repeat the example above of computing the coherence over time with this interface and see how this makes things easier.
from spectral_connectivity import multitaper_connectivity
coherence = multitaper_connectivity(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=5,
time_window_duration=2.0,
method="coherence_magnitude",
)
coherence
<xarray.DataArray 'coherence_magnitude' (time: 30, frequency: 1000, source: 2, target: 2)> array([[[[ nan, 0.15019062], [0.15019062, nan]], [[ nan, 0.1590459 ], [0.1590459 , nan]], [[ nan, 0.18504729], [0.18504729, nan]], ..., [[ nan, 0.13311988], [0.13311988, nan]], [[ nan, 0.03534768], [0.03534768, nan]], [[ nan, 0.00515984], [0.00515984, nan]]], ... [[[ nan, 0.00923646], [0.00923646, nan]], [[ nan, 0.0060699 ], [0.0060699 , nan]], [[ nan, 0.09804826], [0.09804826, nan]], ..., [[ nan, 0.41137038], [0.41137038, nan]], [[ nan, 0.27513766], [0.27513766, nan]], [[ nan, 0.23863733], [0.23863733, nan]]]]) Coordinates: * time (time) float64 0.0 2.0 4.0 6.0 8.0 ... 50.0 52.0 54.0 56.0 58.0 * frequency (frequency) float64 0.0 0.5 1.0 1.5 ... 498.0 498.5 499.0 499.5 * source (source) int64 0 1 * target (target) int64 0 1 Attributes: (12/15) mt_detrend_type: constant mt_frequency_resolution: 5.0 mt_is_low_bias: True mt_n_fft_samples: 2000 mt_n_signals: 2 mt_n_tapers: 9 ... ... mt_nyquist_frequency: 500.0 mt_sampling_frequency: 1000 mt_start_time: 0 mt_time_halfbandwidth_product: 5 mt_time_window_duration: 2.0 mt_time_window_step: 2.0
- time: 30
- frequency: 1000
- source: 2
- target: 2
- nan 0.1502 0.1502 nan nan 0.159 ... 0.2751 nan nan 0.2386 0.2386 nan
array([[[[ nan, 0.15019062], [0.15019062, nan]], [[ nan, 0.1590459 ], [0.1590459 , nan]], [[ nan, 0.18504729], [0.18504729, nan]], ..., [[ nan, 0.13311988], [0.13311988, nan]], [[ nan, 0.03534768], [0.03534768, nan]], [[ nan, 0.00515984], [0.00515984, nan]]], ... [[[ nan, 0.00923646], [0.00923646, nan]], [[ nan, 0.0060699 ], [0.0060699 , nan]], [[ nan, 0.09804826], [0.09804826, nan]], ..., [[ nan, 0.41137038], [0.41137038, nan]], [[ nan, 0.27513766], [0.27513766, nan]], [[ nan, 0.23863733], [0.23863733, nan]]]])
- time(time)float640.0 2.0 4.0 6.0 ... 54.0 56.0 58.0
array([ 0., 2., 4., 6., 8., 10., 12., 14., 16., 18., 20., 22., 24., 26., 28., 30., 32., 34., 36., 38., 40., 42., 44., 46., 48., 50., 52., 54., 56., 58.])
- frequency(frequency)float640.0 0.5 1.0 ... 498.5 499.0 499.5
array([ 0. , 0.5, 1. , ..., 498.5, 499. , 499.5])
- source(source)int640 1
array([0, 1])
- target(target)int640 1
array([0, 1])
- mt_detrend_type :
- constant
- mt_frequency_resolution :
- 5.0
- mt_is_low_bias :
- True
- mt_n_fft_samples :
- 2000
- mt_n_signals :
- 2
- mt_n_tapers :
- 9
- mt_n_time_samples_per_step :
- 2000
- mt_n_time_samples_per_window :
- 2000
- mt_n_trials :
- 1
- mt_nyquist_frequency :
- 500.0
- mt_sampling_frequency :
- 1000
- mt_start_time :
- 0
- mt_time_halfbandwidth_product :
- 5
- mt_time_window_duration :
- 2.0
- mt_time_window_step :
- 2.0
We see that the labeled output conveniently gives us the time and frequencies and signal labels for each dimension. Manipulating xarray by their label name is convenient. Lets’ say we only want frequencies between 100 and 300 Hz. We can grab this data in a convenient way:
coherence.sel(frequency=slice(100, 300))
<xarray.DataArray 'coherence_magnitude' (time: 30, frequency: 401, source: 2, target: 2)> array([[[[ nan, 0.20811035], [0.20811035, nan]], [[ nan, 0.23500603], [0.23500603, nan]], [[ nan, 0.11101969], [0.11101969, nan]], ..., [[ nan, 0.13770835], [0.13770835, nan]], [[ nan, 0.17166775], [0.17166775, nan]], [[ nan, 0.27178454], [0.27178454, nan]]], ... [[[ nan, 0.1233722 ], [0.1233722 , nan]], [[ nan, 0.01402156], [0.01402156, nan]], [[ nan, 0.01869211], [0.01869211, nan]], ..., [[ nan, 0.10371416], [0.10371416, nan]], [[ nan, 0.13492168], [0.13492168, nan]], [[ nan, 0.02686476], [0.02686476, nan]]]]) Coordinates: * time (time) float64 0.0 2.0 4.0 6.0 8.0 ... 50.0 52.0 54.0 56.0 58.0 * frequency (frequency) float64 100.0 100.5 101.0 101.5 ... 299.0 299.5 300.0 * source (source) int64 0 1 * target (target) int64 0 1 Attributes: (12/15) mt_detrend_type: constant mt_frequency_resolution: 5.0 mt_is_low_bias: True mt_n_fft_samples: 2000 mt_n_signals: 2 mt_n_tapers: 9 ... ... mt_nyquist_frequency: 500.0 mt_sampling_frequency: 1000 mt_start_time: 0 mt_time_halfbandwidth_product: 5 mt_time_window_duration: 2.0 mt_time_window_step: 2.0
- time: 30
- frequency: 401
- source: 2
- target: 2
- nan 0.2081 0.2081 nan nan 0.235 ... 0.1349 nan nan 0.02686 0.02686 nan
array([[[[ nan, 0.20811035], [0.20811035, nan]], [[ nan, 0.23500603], [0.23500603, nan]], [[ nan, 0.11101969], [0.11101969, nan]], ..., [[ nan, 0.13770835], [0.13770835, nan]], [[ nan, 0.17166775], [0.17166775, nan]], [[ nan, 0.27178454], [0.27178454, nan]]], ... [[[ nan, 0.1233722 ], [0.1233722 , nan]], [[ nan, 0.01402156], [0.01402156, nan]], [[ nan, 0.01869211], [0.01869211, nan]], ..., [[ nan, 0.10371416], [0.10371416, nan]], [[ nan, 0.13492168], [0.13492168, nan]], [[ nan, 0.02686476], [0.02686476, nan]]]])
- time(time)float640.0 2.0 4.0 6.0 ... 54.0 56.0 58.0
array([ 0., 2., 4., 6., 8., 10., 12., 14., 16., 18., 20., 22., 24., 26., 28., 30., 32., 34., 36., 38., 40., 42., 44., 46., 48., 50., 52., 54., 56., 58.])
- frequency(frequency)float64100.0 100.5 101.0 ... 299.5 300.0
array([100. , 100.5, 101. , ..., 299. , 299.5, 300. ])
- source(source)int640 1
array([0, 1])
- target(target)int640 1
array([0, 1])
- mt_detrend_type :
- constant
- mt_frequency_resolution :
- 5.0
- mt_is_low_bias :
- True
- mt_n_fft_samples :
- 2000
- mt_n_signals :
- 2
- mt_n_tapers :
- 9
- mt_n_time_samples_per_step :
- 2000
- mt_n_time_samples_per_window :
- 2000
- mt_n_trials :
- 1
- mt_nyquist_frequency :
- 500.0
- mt_sampling_frequency :
- 1000
- mt_start_time :
- 0
- mt_time_halfbandwidth_product :
- 5
- mt_time_window_duration :
- 2.0
- mt_time_window_step :
- 2.0

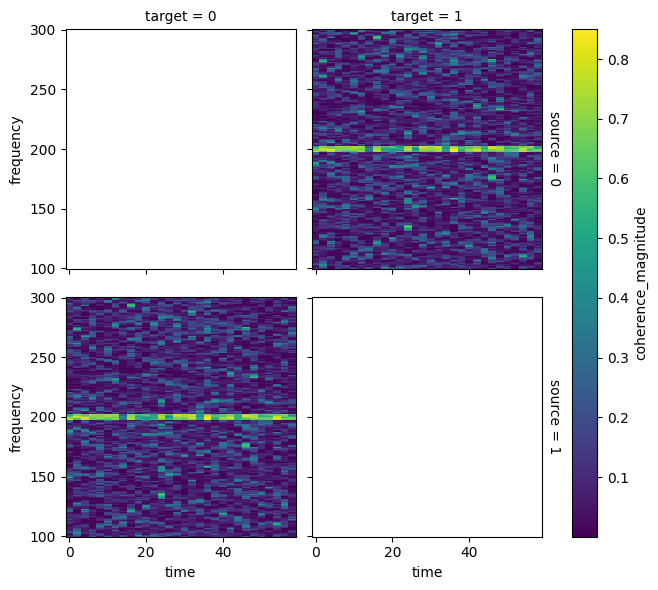

We can also plot this in an easy way that puts the labels on the plot:
coherence.sel(frequency=slice(100, 300)).plot(
x="time", y="frequency", row="source", col="target"
)
<xarray.plot.facetgrid.FacetGrid at 0x7f8a08c30d50>
Fully explaining using xarray arrays is beyond the scope of this tutorial, but see the xarray documentation to explore all the possibilities.
Using GPUs#
The spectral_connectivity
package can do computations on the GPU to speed up the code. To do this, you must have the package cupy
installed AND have the environmental variable SPECTRAL_CONNECTIVITY_ENABLE_GPU
set.
WARNING: the environmental variable must be set before the first import of the spectral_connectivity
package or the GPU enabled functions will not work.
To check if you are using the GPU on first import, use the logging.basicConfig to get messages that will tell you which version is being used.
It is easiest to use conda
to install cupy
because it handles the installation of the correct version of cudatoolkit
. Note that cupy
will not work on Macs.
