Usage Examples#
Here are examples for how to use the API to compute the connectivity measures of interest.
import matplotlib.pyplot as plt
import numpy as np
from spectral_connectivity import Connectivity, Multitaper, multitaper_connectivity
from spectral_connectivity.transforms import prepare_time_series
Power Spectrum#

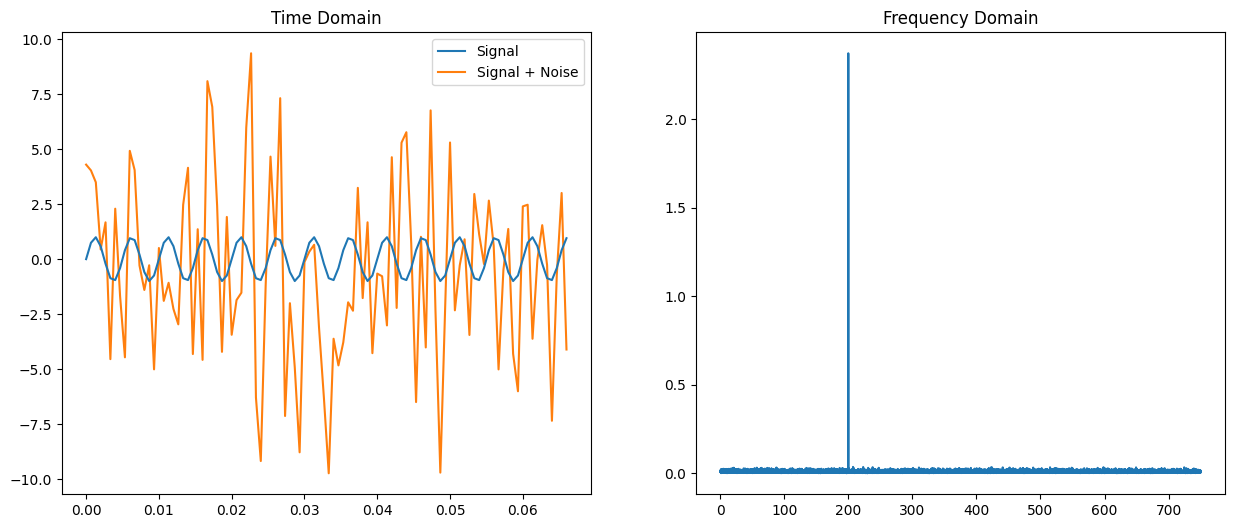

200 Hz signal#
# Simulate signal with noise
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time * frequency_of_interest)
noise = np.random.normal(0, 4, len(signal))
# Plot
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
axes[0].plot(time[:100], signal[:100], label="Signal", zorder=3)
axes[0].plot(time[:100], signal[:100] + noise[:100], label="Signal + Noise")
axes[0].legend()
axes[0].set_title("Time Domain")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1].set_title("Frequency Domain")
Text(0.5, 1.0, 'Frequency Domain')

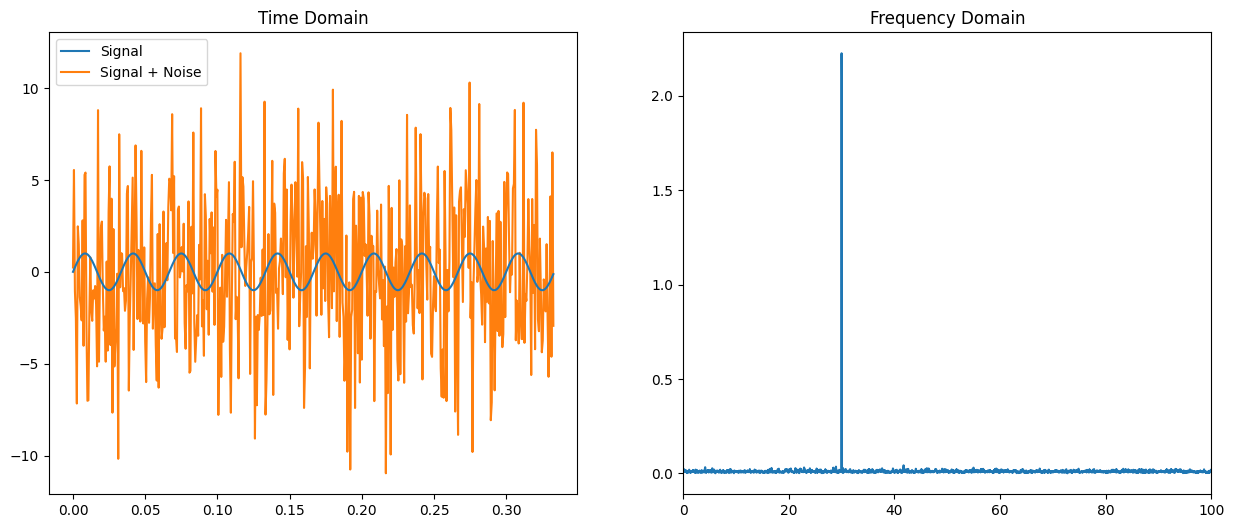

30 Hz signal#
# Simulate signal with noise
frequency_of_interest = 30
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time * frequency_of_interest)
noise = np.random.normal(0, 4, len(signal))
# Plot
fig, axes = plt.subplots(1, 2, figsize=(15, 6))
axes[0].plot(time[:500], signal[:500], label="Signal", zorder=3)
axes[0].plot(time[:500], signal[:500] + noise[:500], label="Signal + Noise")
axes[0].legend()
axes[0].set_title("Time Domain")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1].set_title("Frequency Domain")
axes[1].set_xlim((0, 100))
(0.0, 100.0)

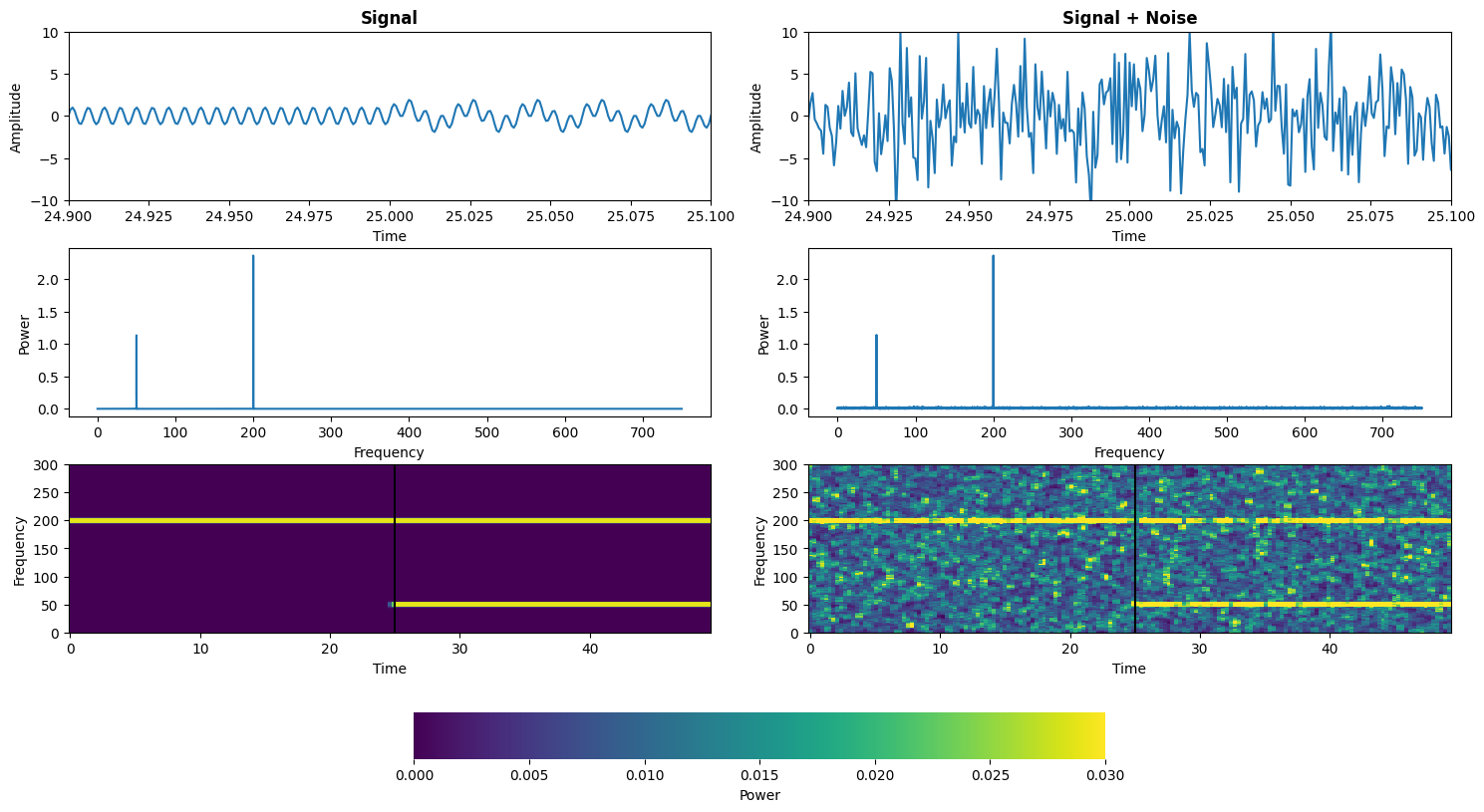

Spectrogram#
No trials, 200 Hz signal with 50 Hz signal starting at 25 seconds#
# Simulate signal
frequency_of_interest = [200, 50]
sampling_frequency = 1500
time_extent = (0, 50)
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)
noise = np.random.normal(0, 4, signal.shape)
# Plot
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_xlim((24.90, 25.10))
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal + noise)
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim((24.90, 25.10))
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1, 0].set_xlabel("Frequency")
axes[1, 0].set_ylabel("Power")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
axes[1, 1].set_xlabel("Frequency")
axes[1, 1].set_ylabel("Power")
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
time_window_duration=0.600,
time_window_step=0.300,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
axes[2, 0].set_ylabel("Frequency")
axes[2, 0].set_xlabel("Time")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
time_window_duration=0.600,
time_window_step=0.300,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
axes[2, 1].set_ylabel("Frequency")
axes[2, 1].set_xlabel("Time")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)

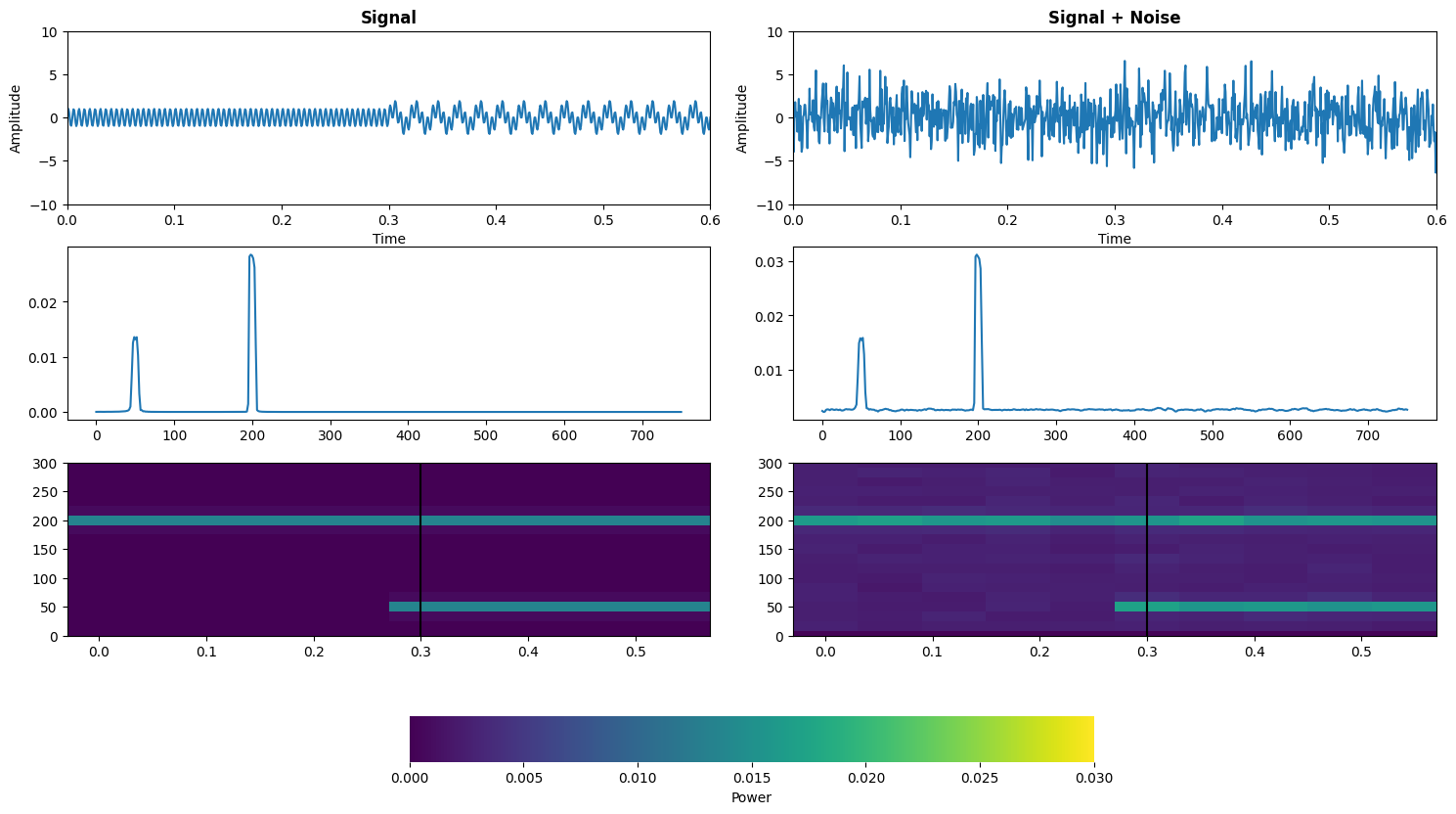

With trial structure (time x trials)#
time_halfbandwidth_product = 1
frequency_of_interest = [200, 50]
time_extent = (0, 0.600)
n_trials = 100
sampling_frequency = 1500
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)[:, np.newaxis, np.newaxis]
noise = np.random.normal(0, 2, size=(n_time_samples, n_trials, 1))
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal.squeeze())
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal[:, 0, 0] + noise[:, 0, 0])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=3,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 33.333333333333336
Decrease frequency resolution by decreasing time_halfbandwidth#
time_halfbandwidth_product = 3
frequency_of_interest = [200, 50]
time_extent = (0, 0.600)
n_trials = 100
sampling_frequency = 1500
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.sin(2 * np.pi * time[:, np.newaxis] * frequency_of_interest)
signal[: n_time_samples // 2, 1] = 0
signal = signal.sum(axis=1)[:, np.newaxis, np.newaxis]
noise = np.random.normal(0, 2, size=(n_time_samples, n_trials, 1))
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9))
axes[0, 0].plot(time, signal.squeeze())
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].set_ylim((-10, 10))
axes[0, 1].plot(time, signal[:, 0, 0] + noise[:, 0, 0])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(connectivity.frequencies, connectivity.power().squeeze())
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 0].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.060,
time_window_step=0.060,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
mesh = axes[2, 1].pcolormesh(
connectivity.time,
connectivity.frequencies,
connectivity.power().squeeze().T,
vmin=0.0,
vmax=0.03,
cmap="viridis",
shading="auto",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].axvline(time[int(np.fix(n_time_samples / 2))], color="black")
plt.tight_layout()
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Power",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 100.0
Coherence#

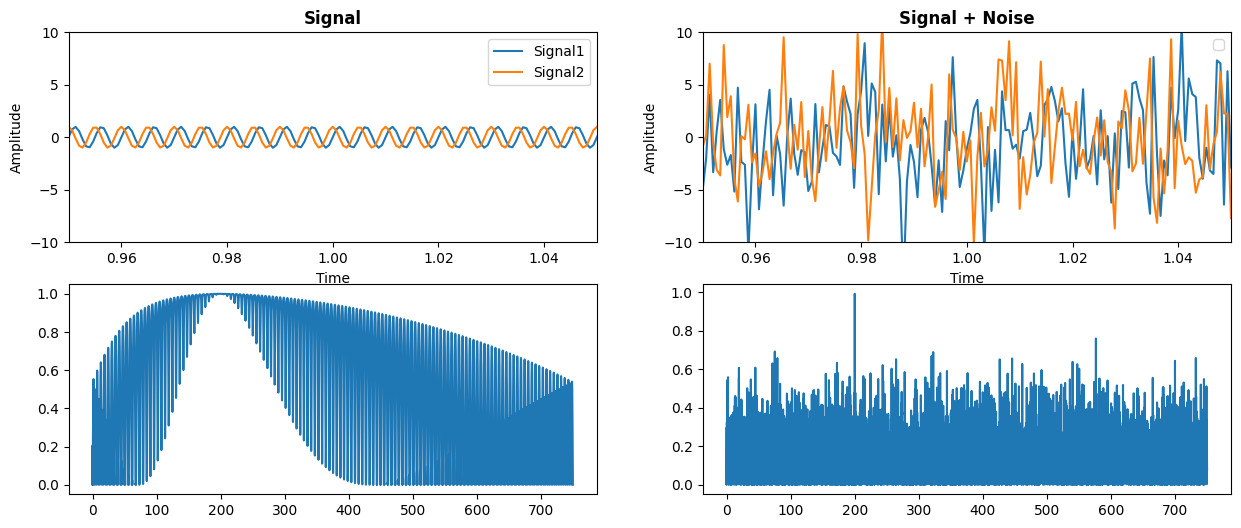

No trials, 200 Hz, \(\pi / 2\) phase offset#
time_halfbandwidth_product = 5
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 50)
n_signals = 2
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_signals))
signal[:, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.pi / 2
signal[:, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 4, signal.shape)
plt.figure(figsize=(15, 6))
plt.subplot(2, 2, 1)
plt.title("Signal", fontweight="bold")
plt.plot(time, signal[:, 0], label="Signal1")
plt.plot(time, signal[:, 1], label="Signal2")
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim((0.95, 1.05))
plt.ylim((-10, 10))
plt.legend()
plt.subplot(2, 2, 2)
plt.title("Signal + Noise", fontweight="bold")
plt.plot(time, signal + noise)
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim((0.95, 1.05))
plt.ylim((-10, 10))
plt.legend()
multitaper = Multitaper(
prepare_time_series(signal, axis="signals"),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 3)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
multitaper = Multitaper(
prepare_time_series(signal + noise, axis="signals"),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 4)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
/var/folders/86/m147b4k17lddvs_xsw0mj2zw0000gn/T/ipykernel_61117/1690376022.py:32: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
plt.legend()
[<matplotlib.lines.Line2D at 0x2a21e8b60>]

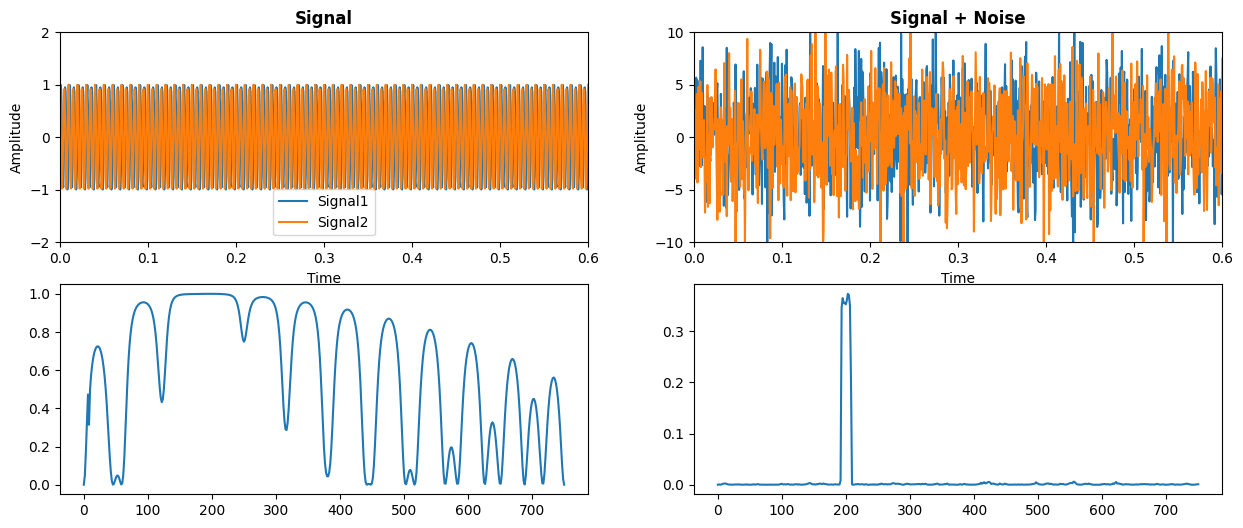

With trial structure (time x trials), 200 Hz, \(\pi / 2\) phase offset#
time_halfbandwidth_product = 5
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 0.600)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 4, signal.shape)
plt.figure(figsize=(15, 6))
plt.subplot(2, 2, 1)
plt.title("Signal", fontweight="bold")
plt.plot(time, signal[:, 0, 0], label="Signal1")
plt.plot(time, signal[:, 0, 1], label="Signal2")
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim(time_extent)
plt.ylim((-2, 2))
plt.legend()
plt.subplot(2, 2, 2)
plt.title("Signal + Noise", fontweight="bold")
plt.plot(time, signal[:, 0, :] + noise[:, 0, :])
plt.xlabel("Time")
plt.ylabel("Amplitude")
plt.xlim(time_extent)
plt.ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 3)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
plt.subplot(2, 2, 4)
plt.plot(connectivity.frequencies, connectivity.coherence_magnitude()[0, :, 0, 1])
[<matplotlib.lines.Line2D at 0x2a1df6b10>]
Cohereograms#

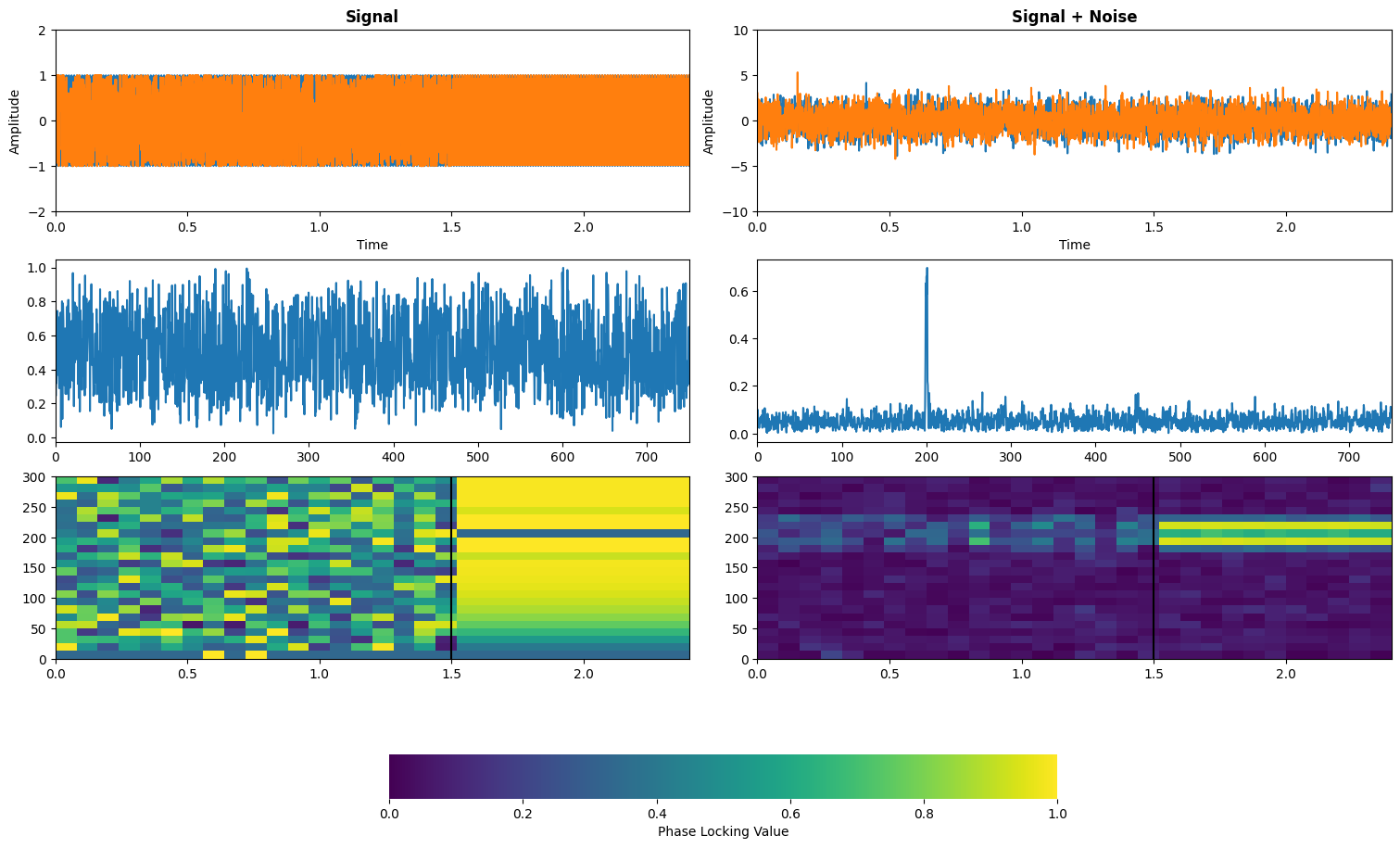

time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0

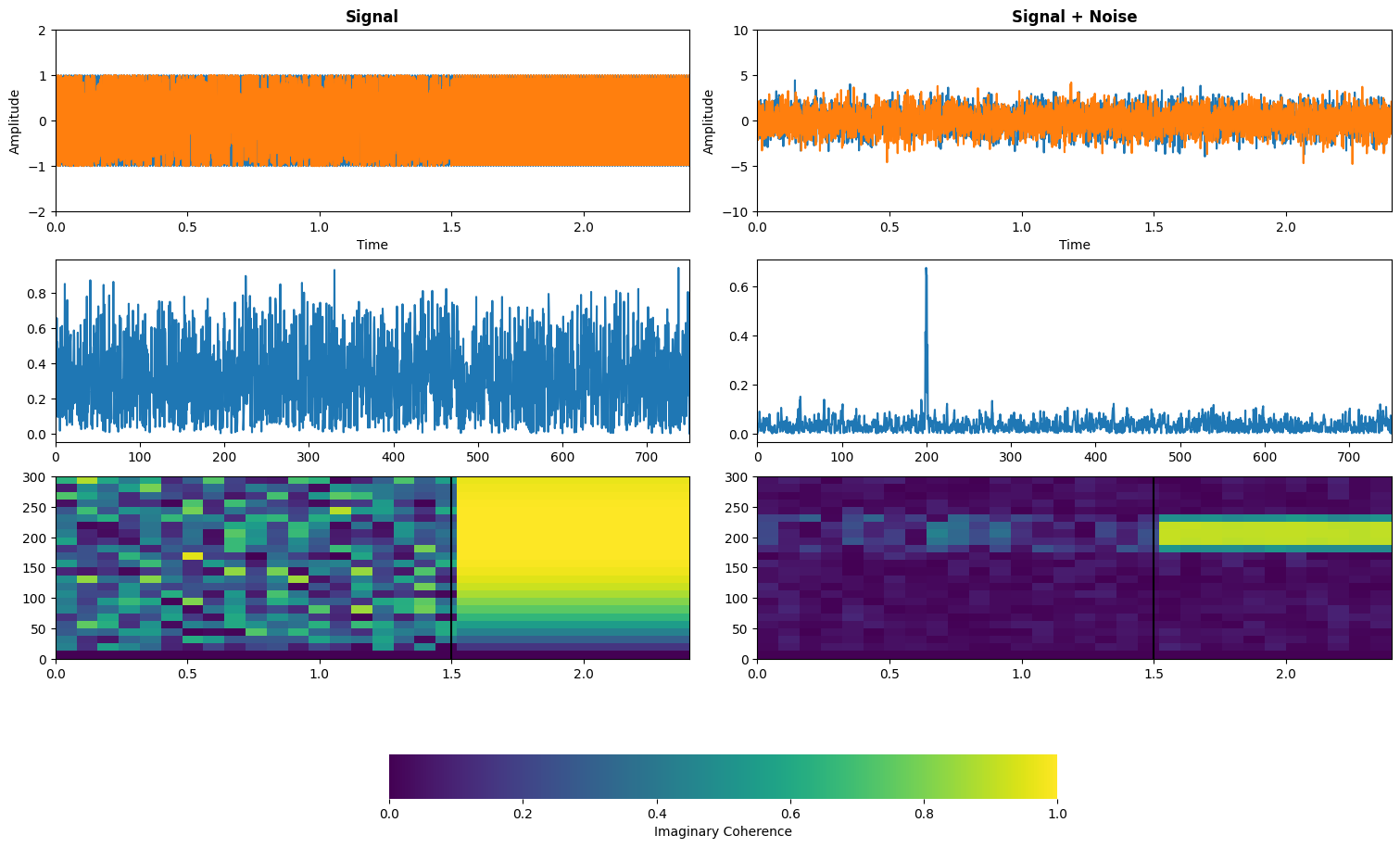

Imaginary Coherence#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.imaginary_coherence()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.imaginary_coherence()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.imaginary_coherence()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.imaginary_coherence()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Imaginary Coherence",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0
Phase Locking Value#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.phase_locking_value()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.phase_locking_value()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_locking_value()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_locking_value()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Phase Locking Value",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0

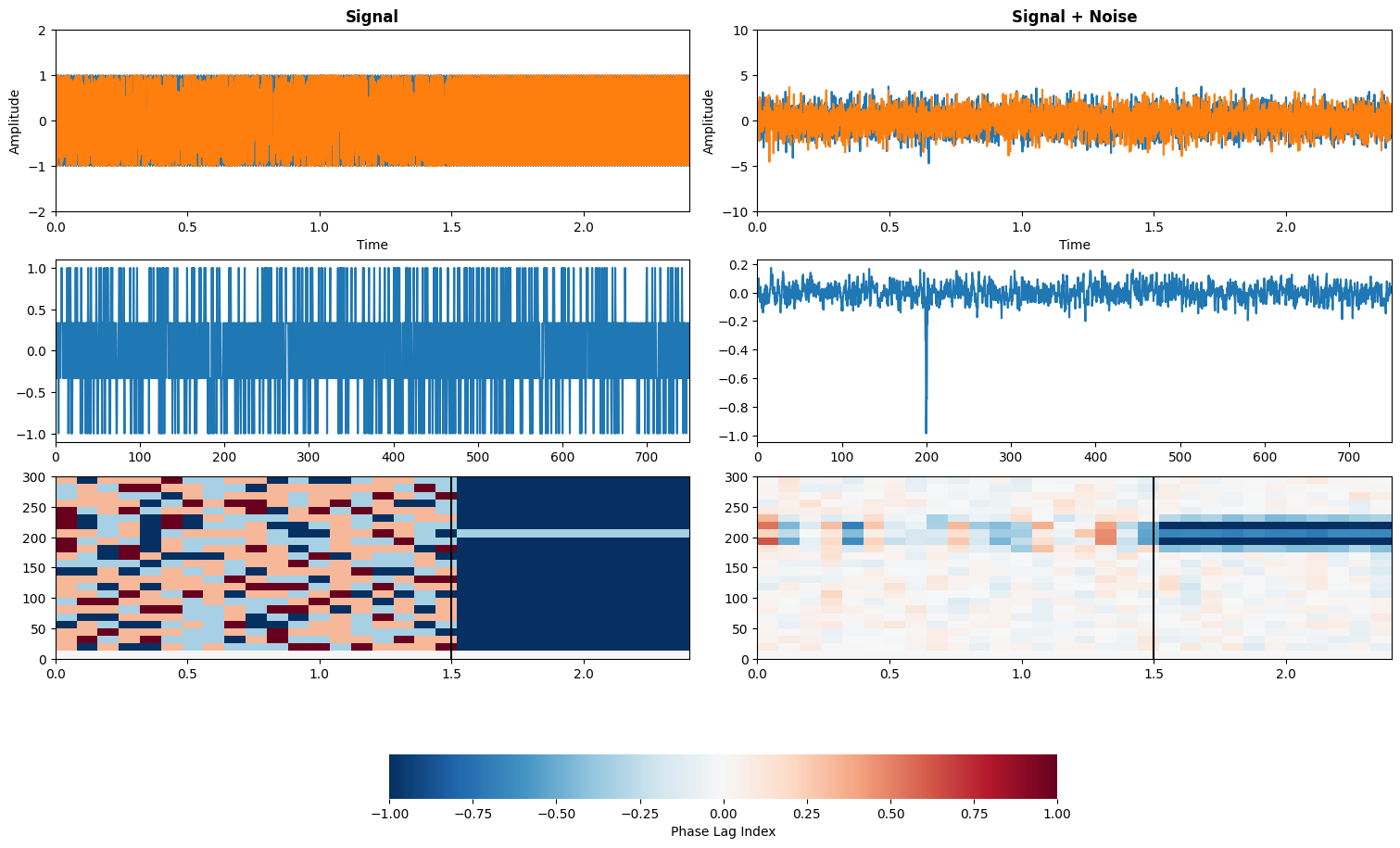

Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies, connectivity.phase_lag_index()[..., 0, 1].squeeze()
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies, connectivity.phase_lag_index()[..., 0, 1].squeeze()
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Phase Lag Index",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0

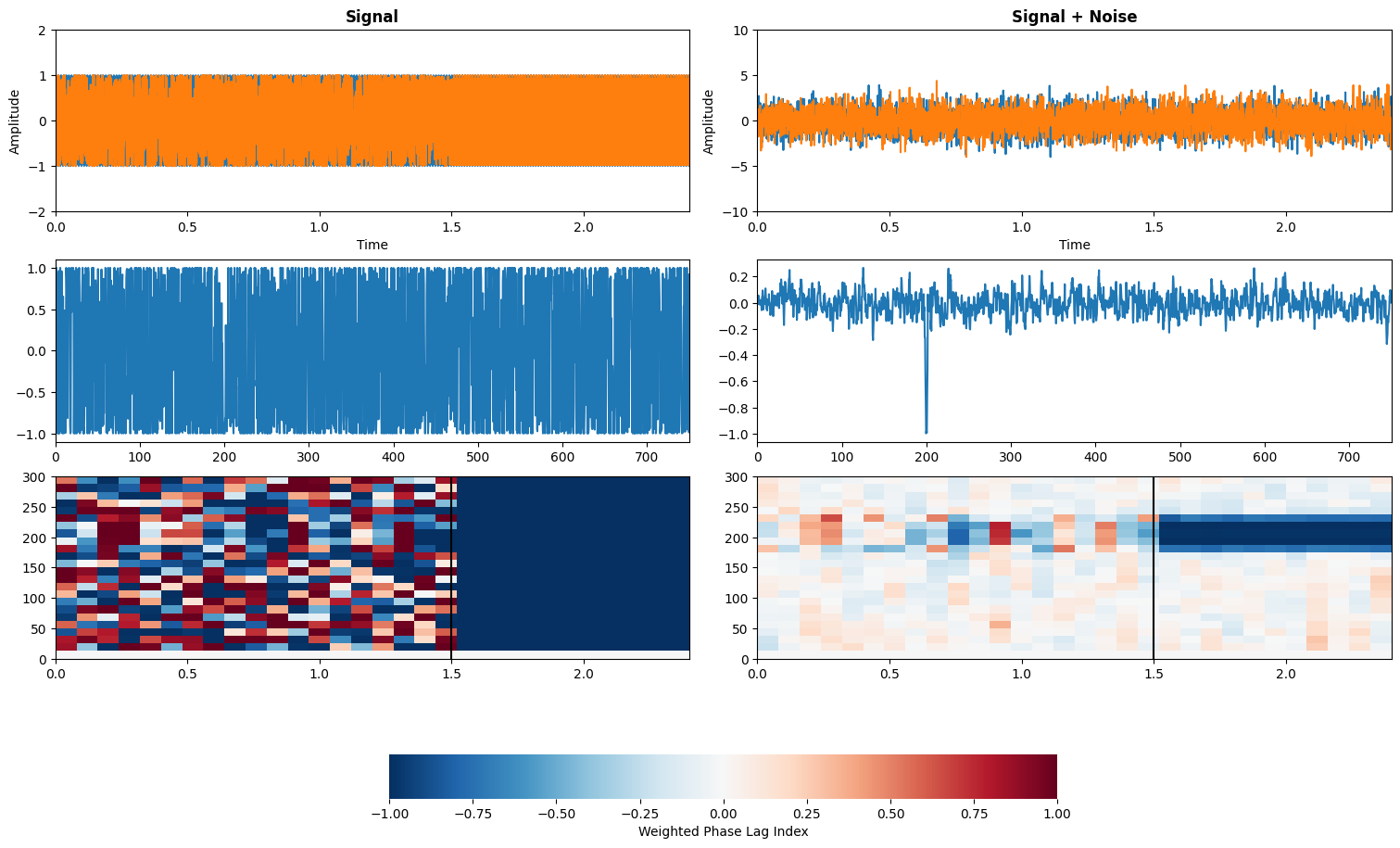

Weighted Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=-1.0,
vmax=1.0,
cmap="RdBu_r",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Weighted Phase Lag Index",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Debiased Squared Phase Lag Index",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0

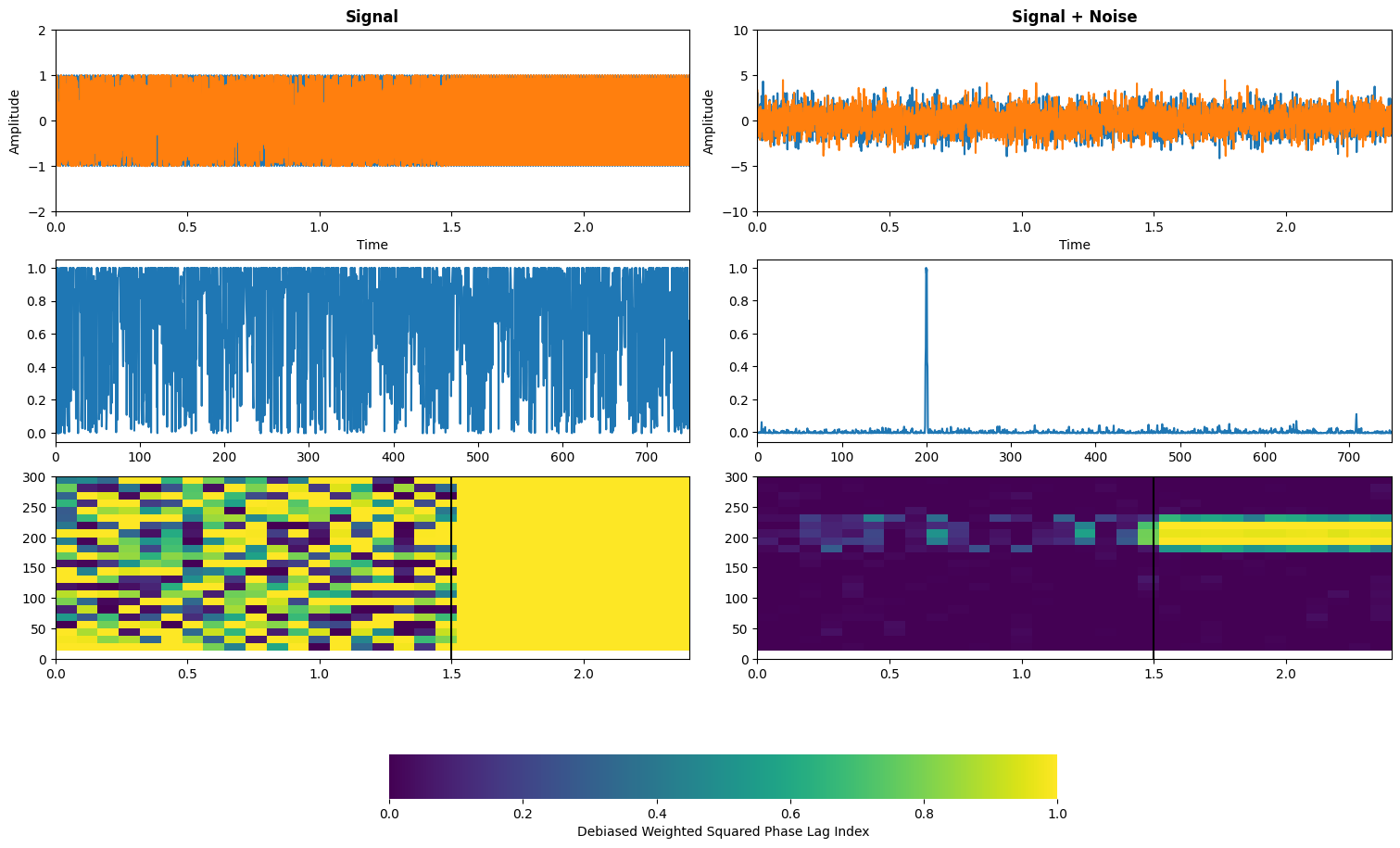

Debiased Squared Weighted Phase Lag Index#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.debiased_squared_weighted_phase_lag_index()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Debiased Weighted Squared Phase Lag Index",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0
Pairwise Phase Consistency#
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 2
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)[
:, np.newaxis
]
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0] = np.sin(2 * np.pi * time * frequency_of_interest)
phase_offset = np.random.uniform(-np.pi, np.pi, size=(n_time_samples, 1))
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, 1] = np.sin((2 * np.pi * time * frequency_of_interest) + phase_offset)
noise = np.random.normal(0, 1, signal.shape)
fig, axes = plt.subplots(nrows=3, ncols=2, figsize=(15, 9), constrained_layout=True)
axes[0, 0].set_title("Signal", fontweight="bold")
axes[0, 0].plot(time, signal[:, 0, 0], label="Signal1")
axes[0, 0].plot(time, signal[:, 0, 1], label="Signal2")
axes[0, 0].set_xlabel("Time")
axes[0, 0].set_ylabel("Amplitude")
axes[0, 0].set_xlim(time_extent)
axes[0, 0].set_ylim((-2, 2))
axes[0, 1].set_title("Signal + Noise", fontweight="bold")
axes[0, 1].plot(time, signal[:, 0, :] + noise[:, 0, :])
axes[0, 1].set_xlabel("Time")
axes[0, 1].set_ylabel("Amplitude")
axes[0, 1].set_xlim(time_extent)
axes[0, 1].set_ylim((-10, 10))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 0].plot(
connectivity.frequencies,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze(),
)
axes[1, 0].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axes[1, 1].plot(
connectivity.frequencies,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze(),
)
axes[1, 1].set_xlim((0, multitaper.nyquist_frequency))
multitaper = Multitaper(
prepare_time_series(signal),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 0].pcolormesh(
time_grid,
freq_grid,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 0].set_ylim((0, 300))
axes[2, 0].set_xlim(time_extent)
axes[2, 0].axvline(1.5, color="black")
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
mesh = axes[2, 1].pcolormesh(
time_grid,
freq_grid,
connectivity.pairwise_phase_consistency()[..., 0, 1].squeeze().T,
vmin=0.0,
vmax=1.0,
cmap="viridis",
)
axes[2, 1].set_ylim((0, 300))
axes[2, 1].set_xlim(time_extent)
axes[2, 1].axvline(1.5, color="black")
cb = fig.colorbar(
mesh,
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Pairwise Phase Consistency",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
frequency resolution: 50.0
Group Delay#

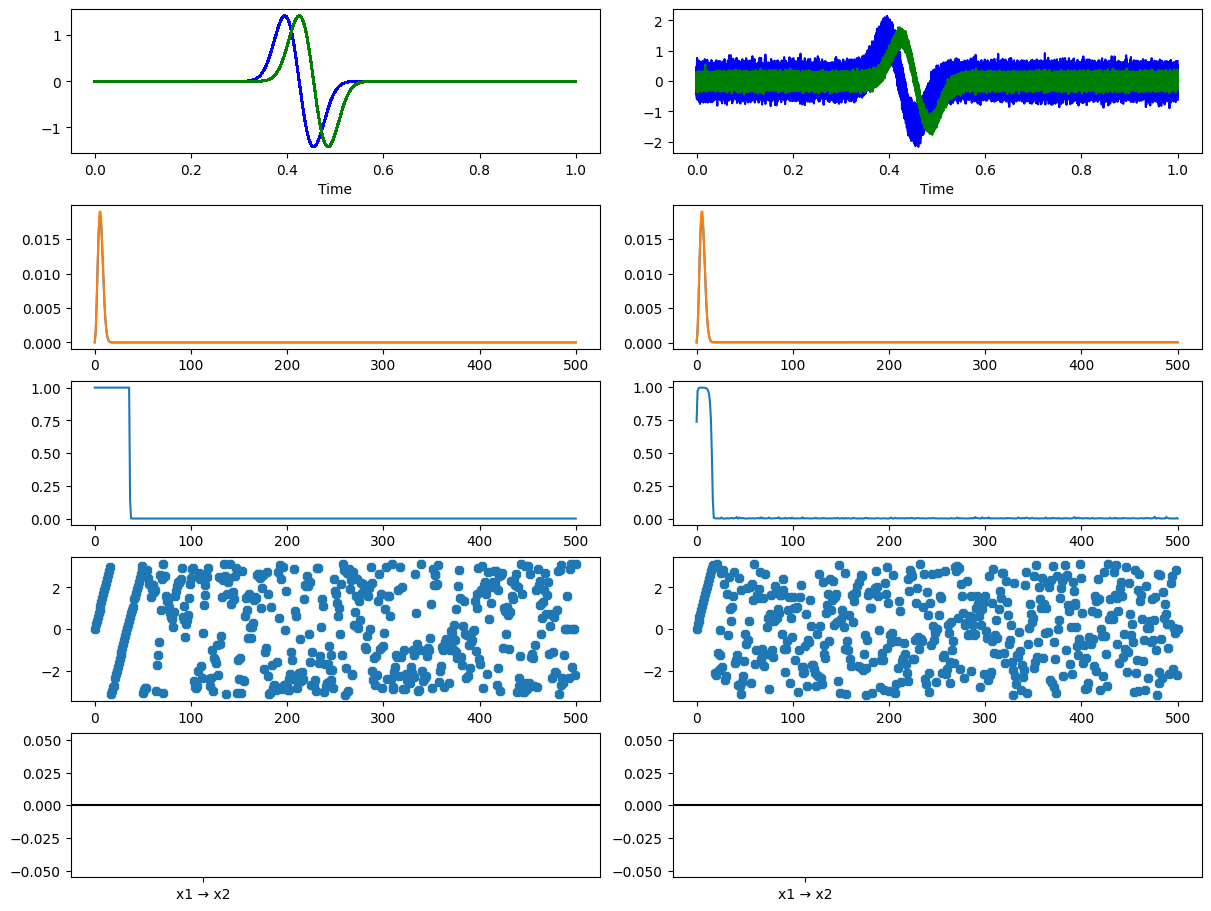

Signal #1 leads Signal #2#
import scipy
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
axis_handles[4, 0].set_xticks([1])
axis_handles[4, 0].set_xticklabels(["x1 → x2"])
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
axis_handles[4, 1].set_xticks([1])
axis_handles[4, 1].set_xticklabels(["x1 → x2"])
[Text(1, 0, 'x1 → x2')]

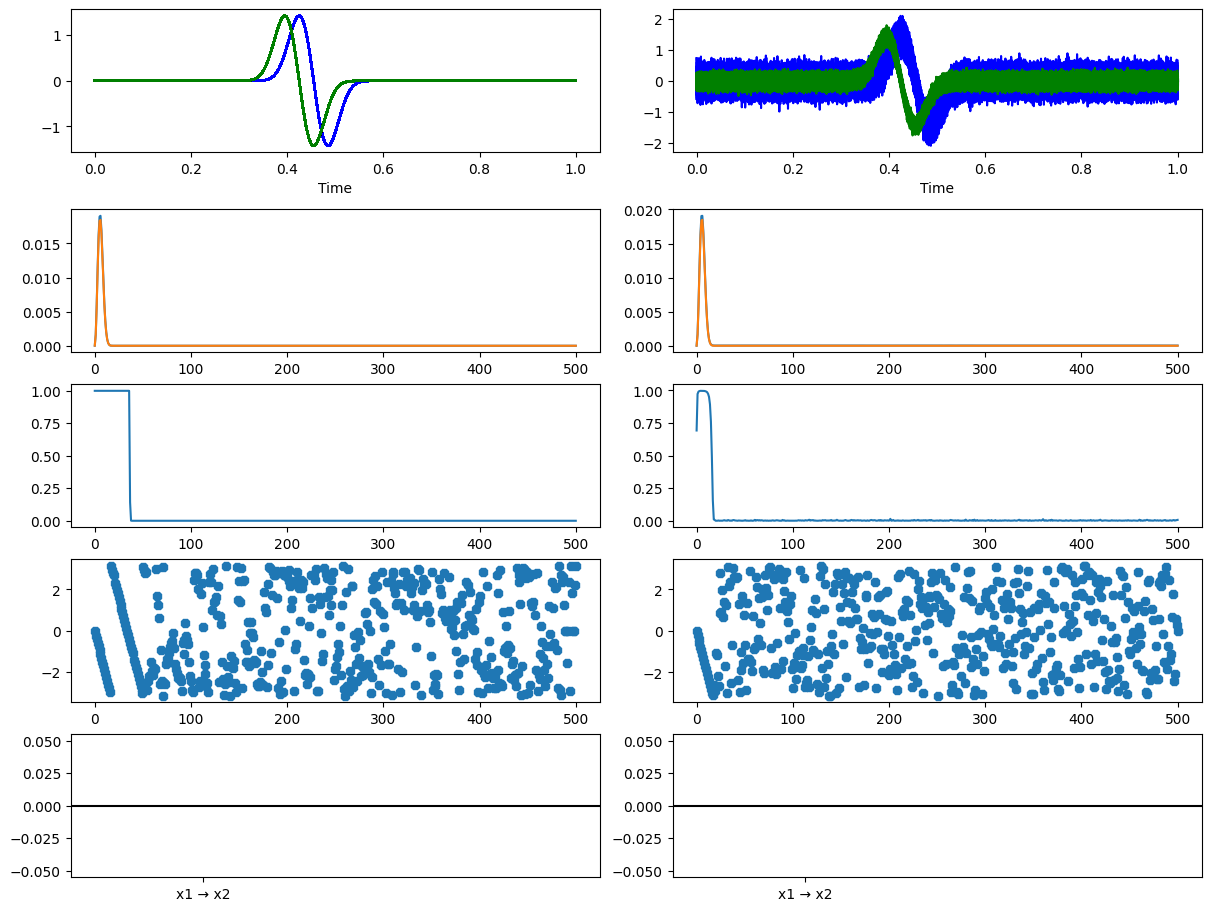

Signal #2 leads Signal #1#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
axis_handles[4, 0].set_xticks([1])
axis_handles[4, 0].set_xticklabels(["x1 → x2"])
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [delay[..., 0, 1].squeeze(), delay[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
axis_handles[4, 1].set_xticks([1])
axis_handles[4, 1].set_xticklabels(["x1 → x2"])
[Text(1, 0, 'x1 → x2')]

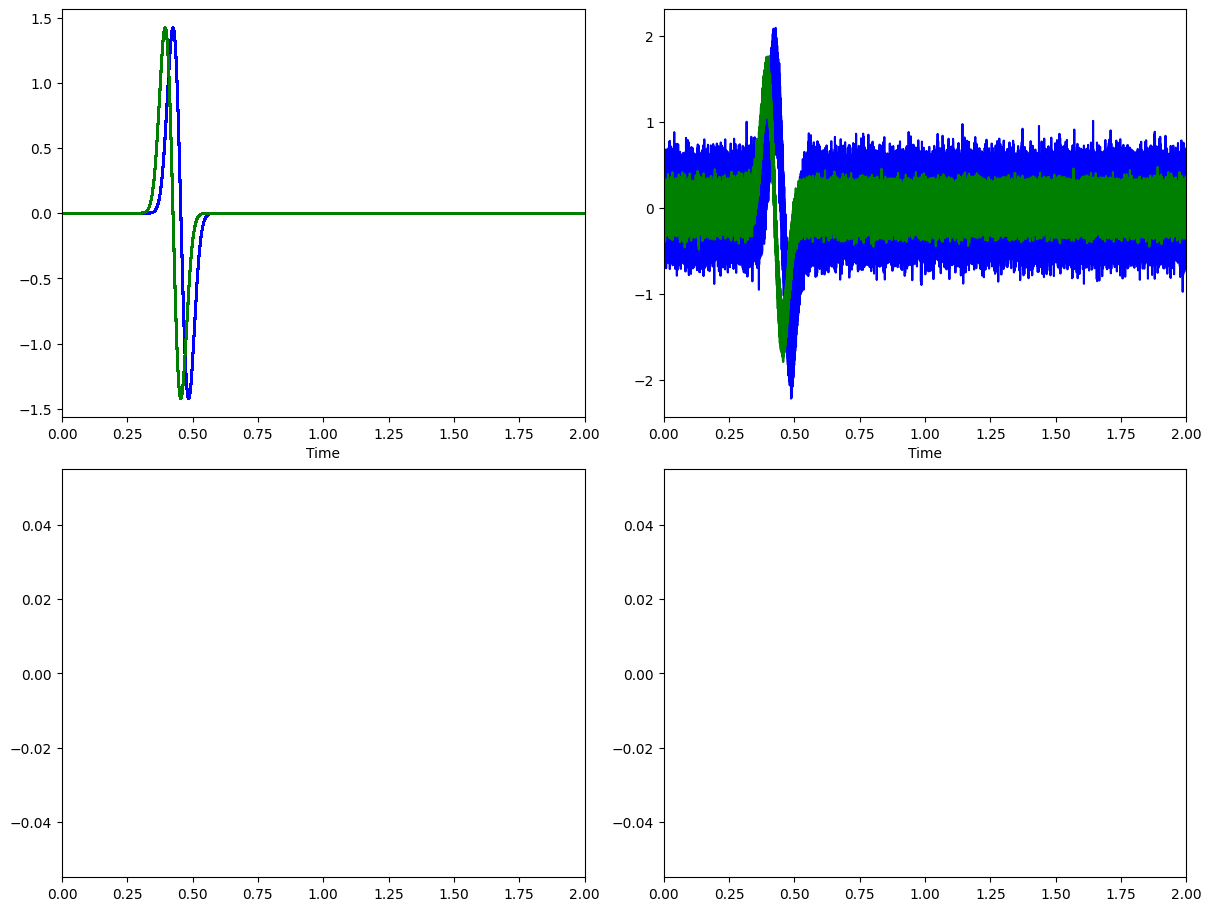

Signal #2 leads Signal #1 over time#
sampling_frequency = 1000
time_extent = (0, 2)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(2, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 0].set_xlim(time_extent)
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
axis_handles[0, 1].set_xlim(time_extent)
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 0].plot(
connectivity.time + multitaper.time_window_duration / 2, delay[..., 0, 1]
)
axis_handles[1, 0].set_xlim(time_extent)
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
delay, slope, r_value = connectivity.group_delay(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 1].plot(
connectivity.time + multitaper.time_window_duration / 2, delay[..., 0, 1]
)
axis_handles[1, 1].set_xlim(time_extent)
(0.0, 2.0)
Phase Slope Index#

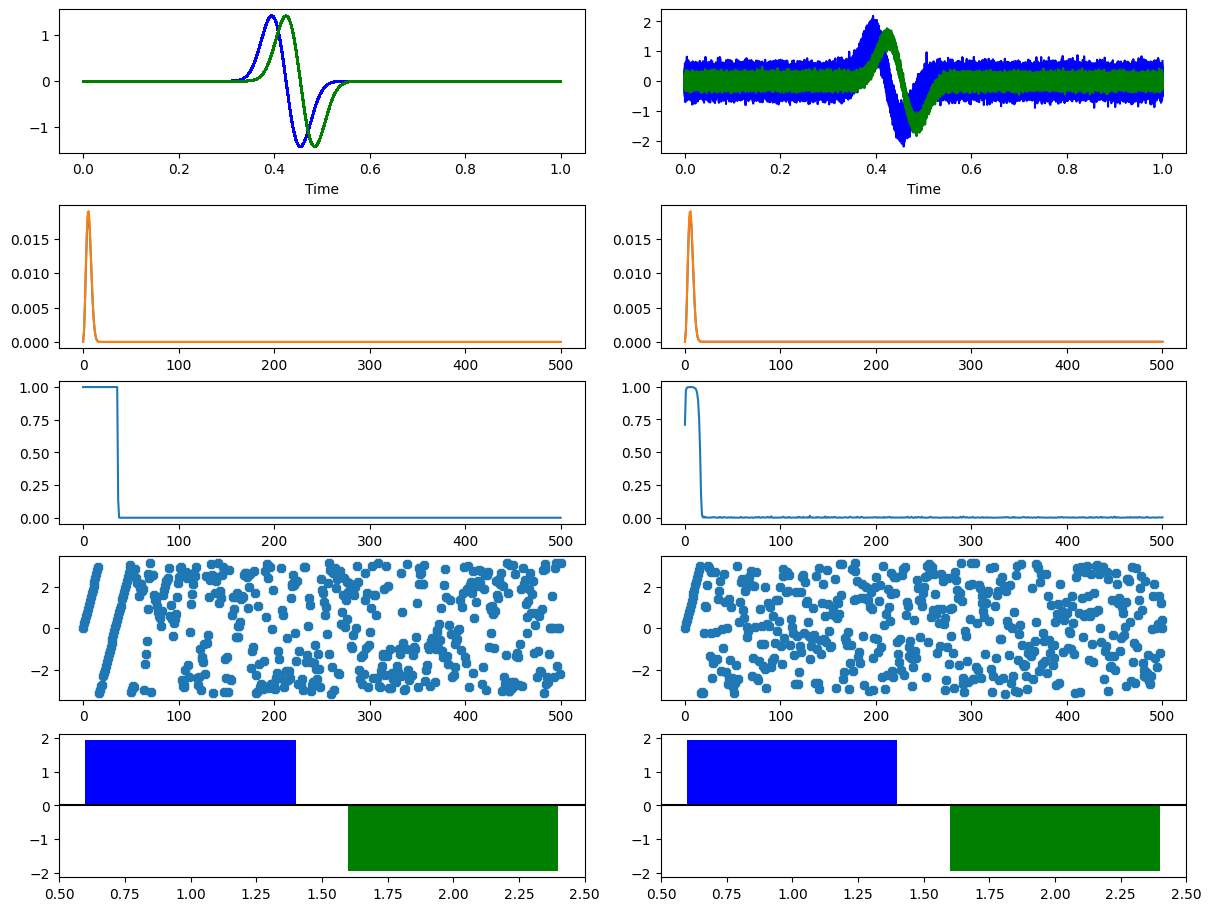

Signal #1 leads Signal #2#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
<matplotlib.lines.Line2D at 0x2c889b8f0>

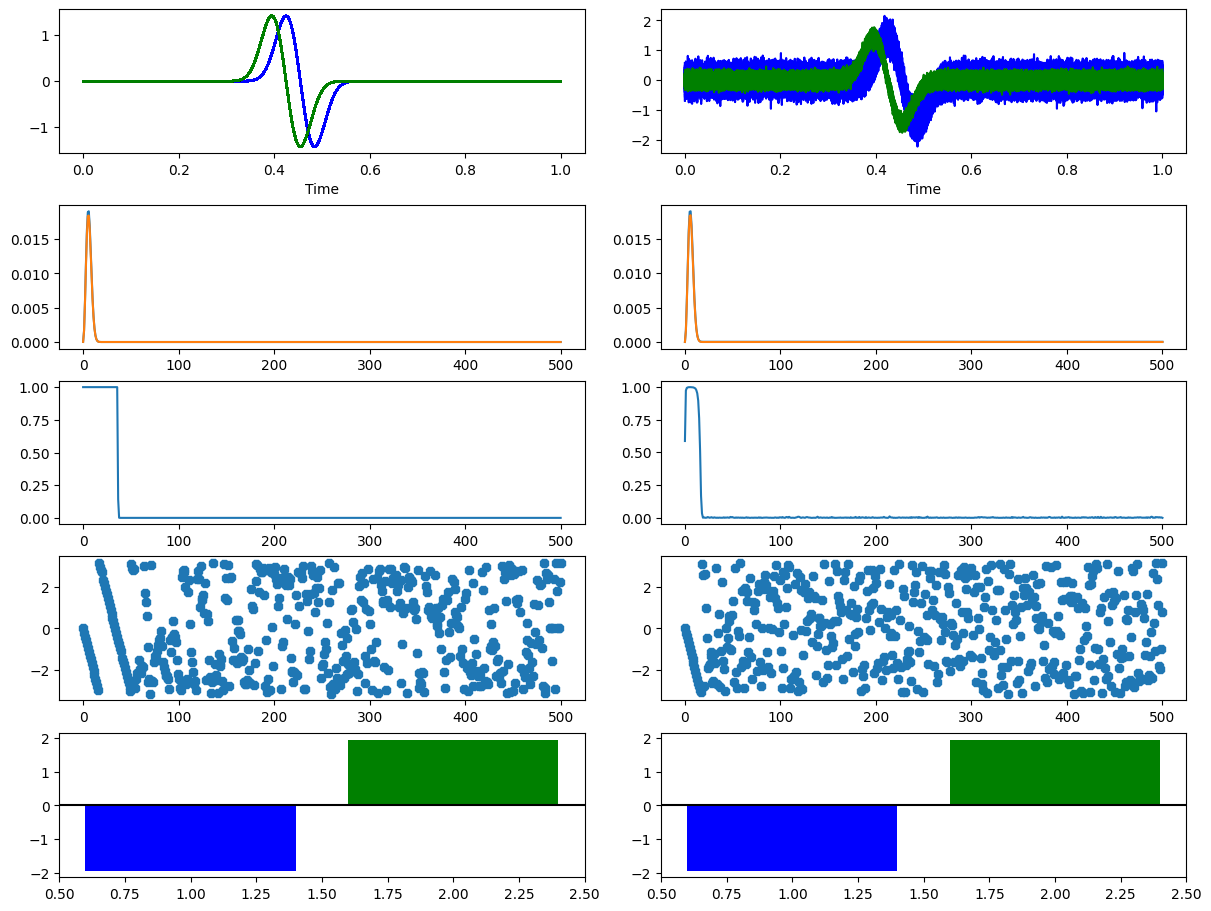

Signal #2 leads Signal #1#
sampling_frequency = 1000
time_extent = (0, 1)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(5, 2, figsize=(12, 9), constrained_layout=True)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_xlabel("Time")
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_xlabel("Time")
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 0].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 0].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 0].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 0].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 0].set_xlim((0.5, 2.5))
axis_handles[4, 0].axhline(0, color="black")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 0].squeeze()
)
axis_handles[1, 1].plot(
connectivity.frequencies, connectivity.power()[..., 1].squeeze()
)
axis_handles[2, 1].plot(
connectivity.frequencies, connectivity.coherence_magnitude()[..., 0, 1].squeeze()
)
axis_handles[3, 1].plot(
connectivity.frequencies,
connectivity.coherence_phase()[..., 0, 1].squeeze(),
linestyle="None",
marker="8",
)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[2, 10],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[4, 1].bar(
[1, 2], [psi[..., 0, 1].squeeze(), psi[..., 1, 0].squeeze()], color=["b", "g"]
)
axis_handles[4, 1].set_xlim((0.5, 2.5))
axis_handles[4, 1].axhline(0, color="black")
<matplotlib.lines.Line2D at 0x2f5856f60>

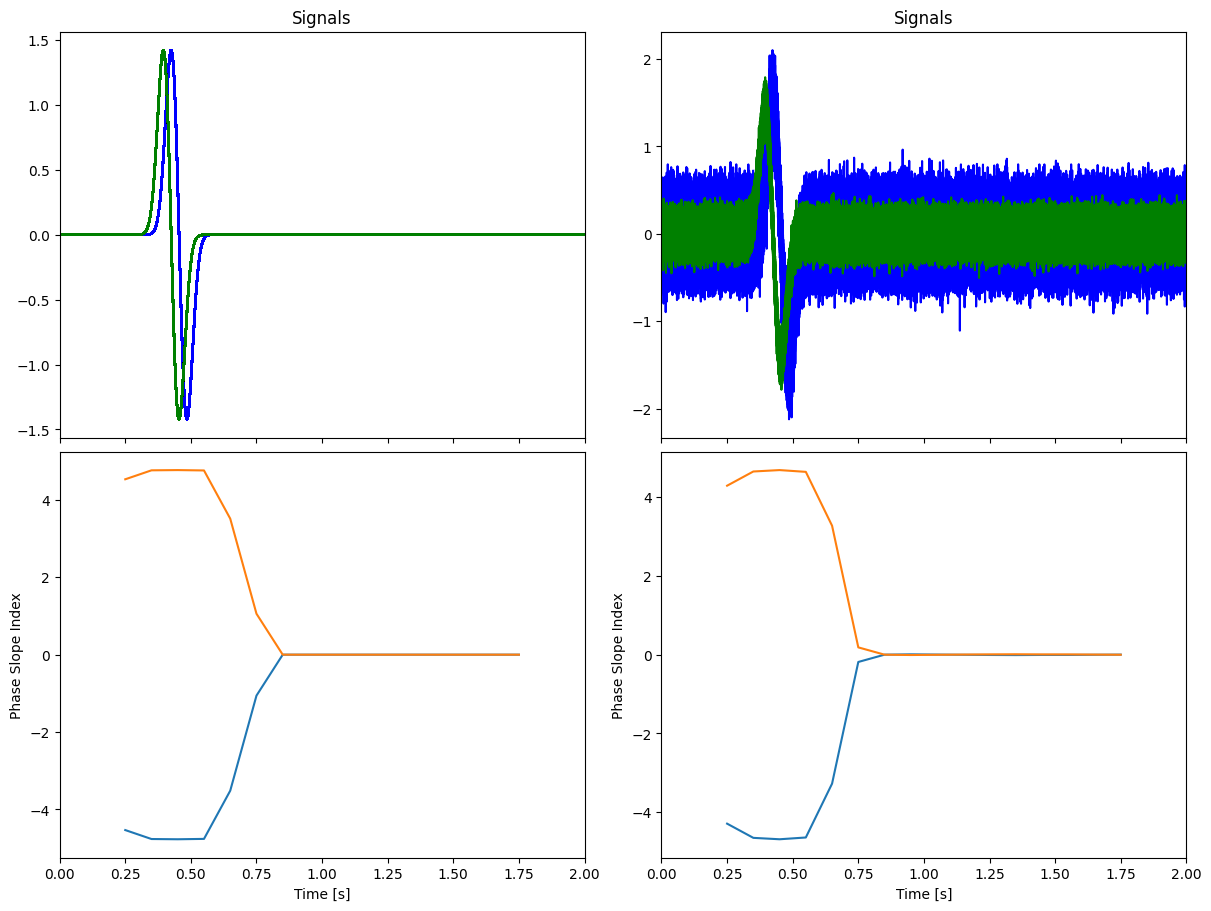

sampling_frequency = 1000
time_extent = (0, 2)
n_trials = 500
time_halfbandwidth_product = 1
n_time_samples = ((time_extent[1] - time_extent[0]) * sampling_frequency) + 1
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples)
signal1 = (
scipy.stats.norm.pdf(time, 0.43, 0.025) - scipy.stats.norm.pdf(time, 0.48, 0.025)
) / 10
signal1 = signal1[:, np.newaxis] * np.ones((len(time), n_trials))
signal2 = (
scipy.stats.norm.pdf(time, 0.40, 0.025) - scipy.stats.norm.pdf(time, 0.45, 0.025)
) / 10
signal2 = signal2[:, np.newaxis] * np.ones((len(time), n_trials))
noise1 = np.random.normal(0, 0.2, size=(len(time), n_trials))
noise2 = np.random.normal(0, 0.1, size=(len(time), n_trials))
data1 = signal1 + noise1
data2 = signal2 + noise2
signals = np.stack((signal1, signal2), axis=-1)
data = np.stack((data1, data2), axis=-1)
fig, axis_handles = plt.subplots(
2, 2, figsize=(12, 9), constrained_layout=True, sharex=True
)
axis_handles[0, 0].plot(time, signal1, color="blue")
axis_handles[0, 0].plot(time, signal2, color="green")
axis_handles[0, 0].set_title("Signals")
axis_handles[0, 0].set_xlim(time_extent)
axis_handles[0, 1].plot(time, data1, color="blue")
axis_handles[0, 1].plot(time, data2, color="green")
axis_handles[0, 1].set_title("Signals")
axis_handles[0, 1].set_xlim(time_extent)
multitaper = Multitaper(
signals,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 0].plot(
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 0, 1],
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 1, 0],
)
axis_handles[1, 0].set_xlim(time_extent)
axis_handles[1, 0].set_xlabel("Time [s]")
axis_handles[1, 0].set_ylabel("Phase Slope Index")
multitaper = Multitaper(
data,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.500,
time_window_step=0.100,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
psi = connectivity.phase_slope_index(
frequencies_of_interest=[0, 15],
frequency_resolution=multitaper.frequency_resolution,
)
axis_handles[1, 1].plot(
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 0, 1],
connectivity.time + multitaper.time_window_duration / 2,
psi[..., 1, 0],
)
axis_handles[1, 1].set_xlim(time_extent)
axis_handles[1, 1].set_xlabel("Time [s]")
axis_handles[1, 1].set_ylabel("Phase Slope Index")
Text(0, 0.5, 'Phase Slope Index')

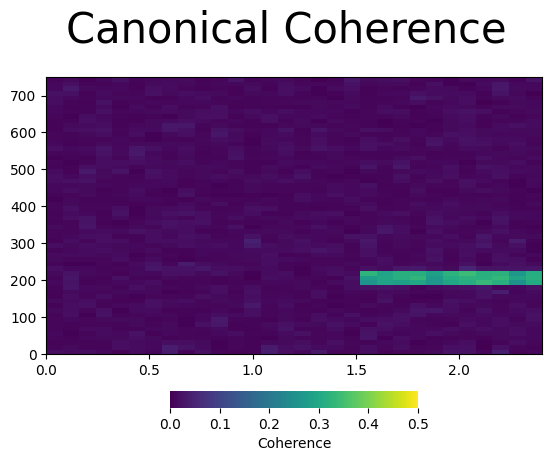

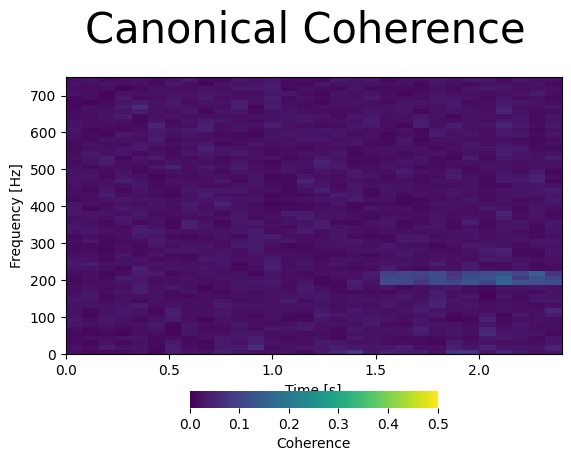

Canonical Coherence#
The advantage of canonical coherence is that it can be more statistically powerful than coherence because it is combining coherence from groups.
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 4
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(0, 4, signal.shape)
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)

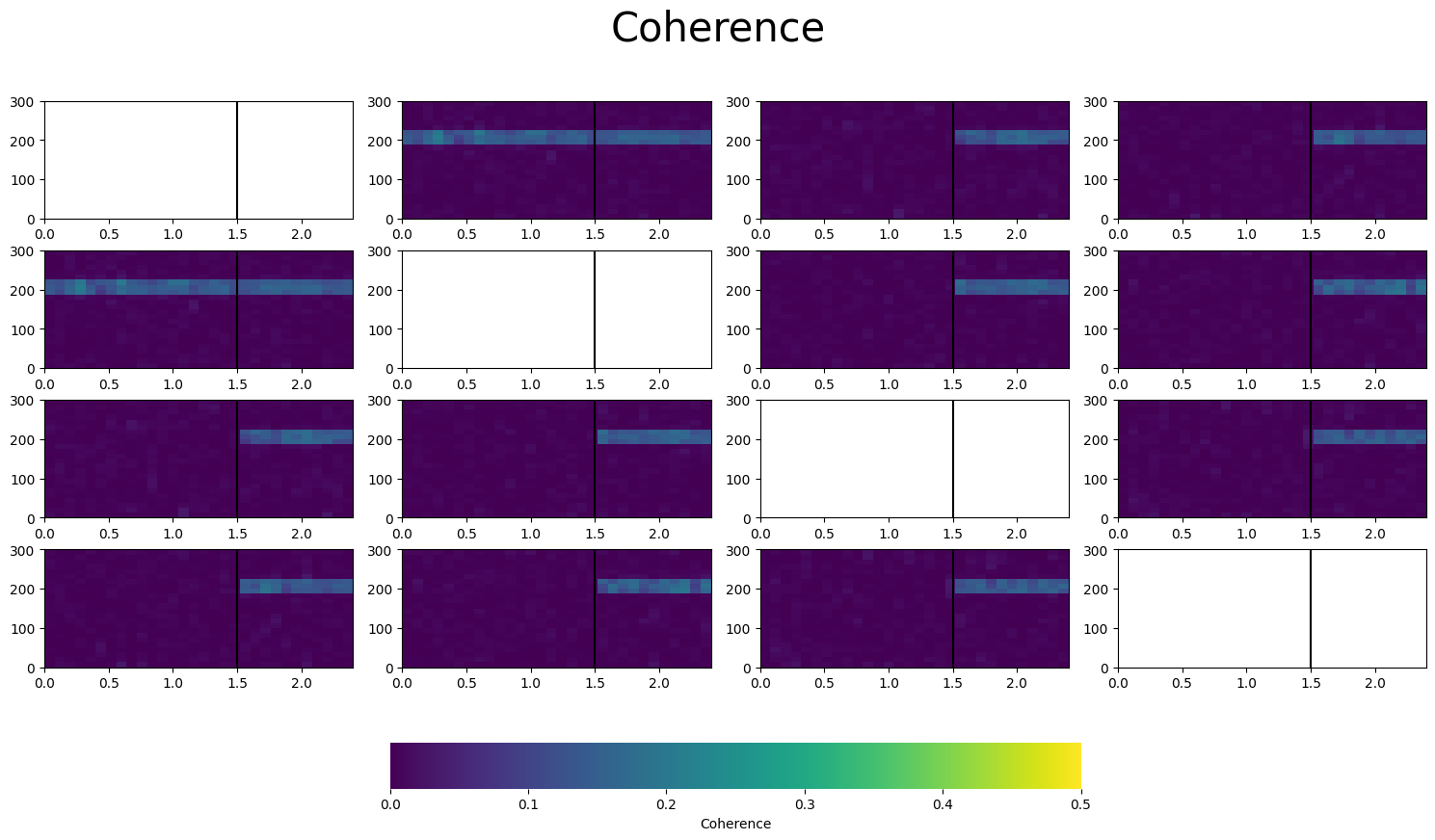

fig, axes = plt.subplots(nrows=n_signals, ncols=n_signals, figsize=(15, 9))
meshes = []
for ind1, ind2 in product(range(n_signals), range(n_signals)):
if ind1 == ind2:
vmin, vmax = connectivity.power().min(), connectivity.power().max()
else:
vmin, vmax = 0, 0.5
mesh = axes[ind1, ind2].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., ind1, ind2].squeeze().T,
vmin=vmin,
vmax=vmax,
cmap="viridis",
)
meshes.append(mesh)
axes[ind1, ind2].set_ylim((0, 300))
axes[ind1, ind2].set_xlim(time_extent)
axes[ind1, ind2].axvline(1.5, color="black")

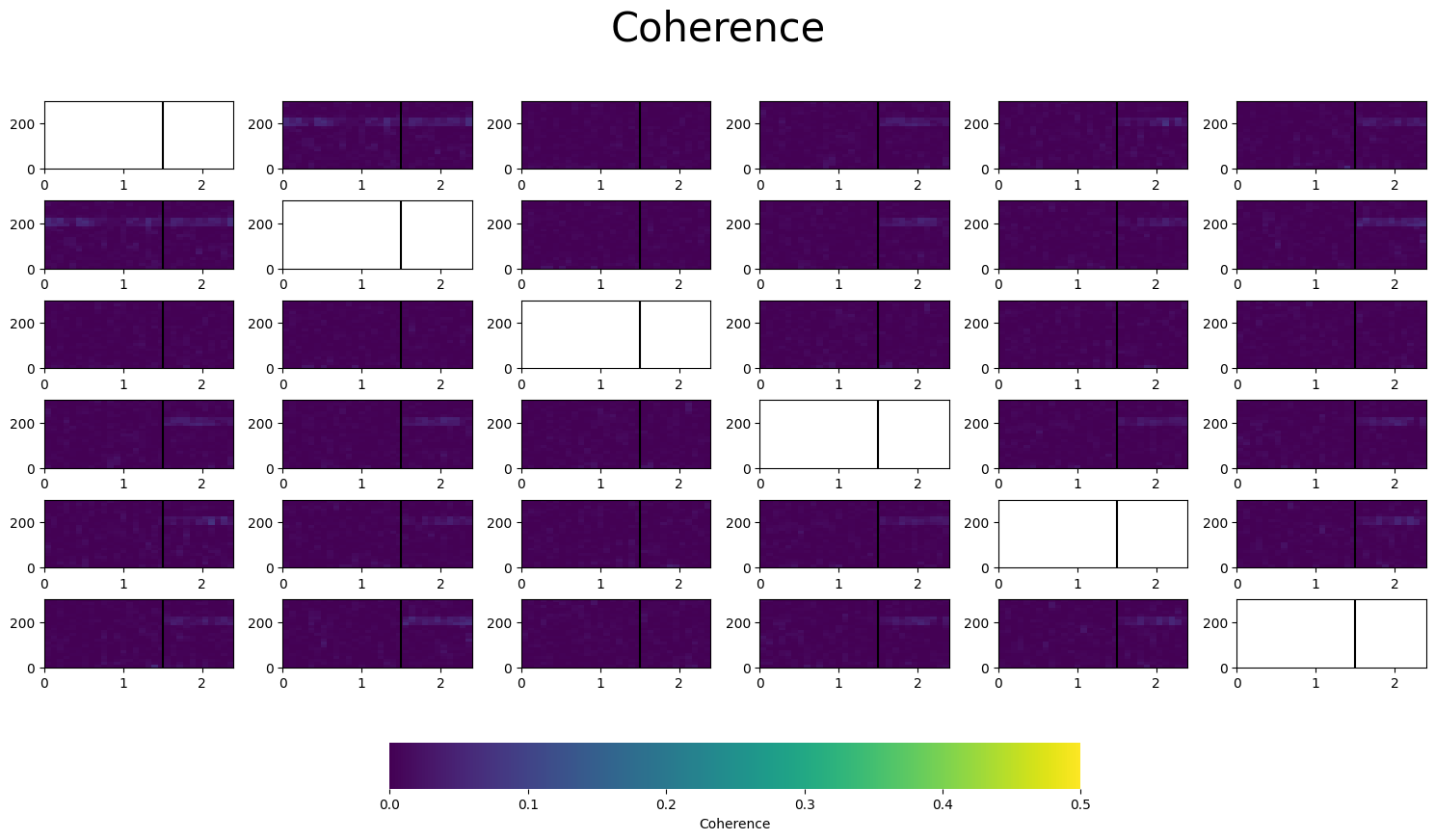

plt.suptitle("Coherence", y=1.02, fontsize=30)
plt.tight_layout()
cb = fig.colorbar(
meshes[-2],
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
group_labels = (["a"] * (n_signals - n_other_signals)) + (["b"] * n_other_signals)
canonical_coherence, pair_labels = connectivity.canonical_coherence(group_labels)
fig = plt.figure()
mesh = plt.pcolormesh(
time_grid,
freq_grid,
canonical_coherence[..., 0, 1].squeeze().T,
vmin=0,
vmax=0.5,
cmap="viridis",
)
plt.suptitle("Canonical Coherence", y=1.02, fontsize=30)
cb = fig.colorbar(
mesh,
ax=plt.gca(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
frequency resolution: 50.0
More signals, higher noise#
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 6
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(10, 7, signal.shape)
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(connectivity.frequencies, multitaper.nyquist_frequency),
)
fig, axes = plt.subplots(nrows=n_signals, ncols=n_signals, figsize=(15, 9))
meshes = []
for ind1, ind2 in product(range(n_signals), range(n_signals)):
if ind1 == ind2:
vmin, vmax = connectivity.power().min(), connectivity.power().max()
else:
vmin, vmax = 0, 0.5
mesh = axes[ind1, ind2].pcolormesh(
time_grid,
freq_grid,
connectivity.coherence_magnitude()[..., ind1, ind2].squeeze().T,
vmin=vmin,
vmax=vmax,
cmap="viridis",
)
meshes.append(mesh)
axes[ind1, ind2].set_ylim((0, 300))
axes[ind1, ind2].set_xlim(time_extent)
axes[ind1, ind2].axvline(1.5, color="black")
plt.suptitle("Coherence", y=1.02, fontsize=30)
plt.tight_layout()
cb = fig.colorbar(
meshes[-2],
ax=axes.ravel().tolist(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
print(f"frequency resolution: {multitaper.frequency_resolution}")
group_labels = (["a"] * (n_signals - n_other_signals)) + (["b"] * n_other_signals)
canonical_coherence, pair_labels = connectivity.canonical_coherence(group_labels)
fig = plt.figure()
mesh = plt.pcolormesh(
time_grid,
freq_grid,
canonical_coherence[..., 0, 1].squeeze().T,
vmin=0,
vmax=0.5,
cmap="viridis",
)
plt.xlabel("Time [s]")
plt.ylabel("Frequency [Hz]")
plt.suptitle("Canonical Coherence", y=1.02, fontsize=30)
cb = fig.colorbar(
mesh,
ax=plt.gca(),
orientation="horizontal",
shrink=0.5,
aspect=15,
pad=0.1,
label="Coherence",
)
cb.outline.set_linewidth(0)
frequency resolution: 50.0
Global Coherence#
Global coherence finds the linear combinations of signals that maximizes the power at a given frequency.
from itertools import product
time_halfbandwidth_product = 2
frequency_of_interest = 200
sampling_frequency = 1500
time_extent = (0, 2.400)
n_trials = 100
n_signals = 6
n_time_samples = int(((time_extent[1] - time_extent[0]) * sampling_frequency) + 1)
time = np.linspace(time_extent[0], time_extent[1], num=n_time_samples, endpoint=True)
signal = np.zeros((n_time_samples, n_trials, n_signals))
signal[:, :, 0:2] = np.sin(2 * np.pi * time * frequency_of_interest)[
:, np.newaxis, np.newaxis
] * np.ones((1, n_trials, 2))
other_signals = (n_signals + 1) // 2
n_other_signals = n_signals - other_signals
phase_offset = np.random.uniform(
-np.pi, np.pi, size=(n_time_samples, n_trials, n_other_signals)
)
phase_offset[np.where(time > 1.5), :] = np.pi / 2
signal[:, :, other_signals:] = np.sin(
(2 * np.pi * time[:, np.newaxis, np.newaxis] * frequency_of_interest) + phase_offset
)
noise = np.random.normal(10, 7, signal.shape)
multitaper = Multitaper(
prepare_time_series(signal + noise),
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
start_time=time[0],
)
connectivity = Connectivity.from_multitaper(multitaper)
global_coherence, unnormalized_global_coherence = connectivity.global_coherence()
print(global_coherence.shape) # n_time, n_frequencies, n_components
# Extract non-negative frequencies (first N//2+1 frequencies)
n_nonneg_freqs = len(connectivity.frequencies)
global_coherence_nonneg = global_coherence[:, :n_nonneg_freqs, 0].T # (freqs, time)
time_grid, freq_grid = np.meshgrid(
np.append(connectivity.time, time_extent[-1]),
np.append(
connectivity.frequencies, connectivity.frequencies[-1]
), # Add edge for pcolormesh
)
plt.figure()
plt.pcolormesh(
time_grid,
freq_grid,
global_coherence_nonneg,
shading="flat",
)
plt.title("Global Coherence (1st component)")
plt.xlabel("Time [s]")
plt.ylabel("Frequency [Hz]")

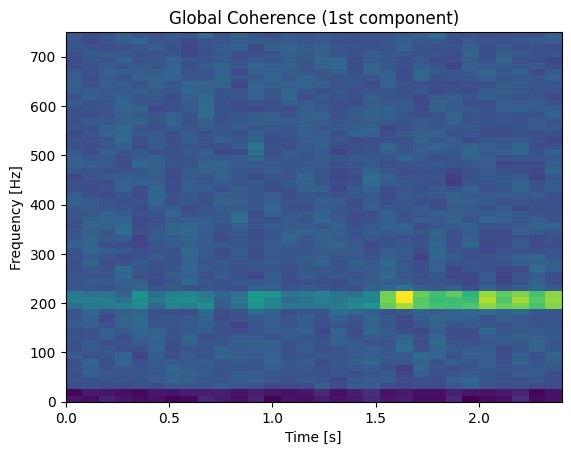

(30, 120, 1)
Text(0, 0.5, 'Frequency [Hz]')
Xarray interface#
The xarray interface provides three things:
a nicely labeled output for the connectivity dimensions
a unified way of estimating the spectral power and connectivity together.
easy and quick plotting
coherence_magnitude = multitaper_connectivity(
signal + noise,
sampling_frequency=sampling_frequency,
time_halfbandwidth_product=time_halfbandwidth_product,
time_window_duration=0.080,
time_window_step=0.080,
method="coherence_magnitude",
)
coherence_magnitude
<xarray.DataArray 'coherence_magnitude' (time: 30, frequency: 61, source: 6,
target: 6)> Size: 527kB
array([[[[ nan, 1.42074340e-02, 1.63599396e-04,
4.85069305e-03, 1.16437359e-02, 6.95117093e-03],
[1.42074340e-02, nan, 4.16663462e-03,
1.90298609e-03, 4.09819961e-03, 3.45353357e-04],
[1.63599396e-04, 4.16663462e-03, nan,
2.01053120e-02, 6.03743410e-03, 6.84262738e-04],
[4.85069305e-03, 1.90298609e-03, 2.01053120e-02,
nan, 4.70165587e-04, 1.64505028e-03],
[1.16437359e-02, 4.09819961e-03, 6.03743410e-03,
4.70165587e-04, nan, 1.29632884e-03],
[6.95117093e-03, 3.45353357e-04, 6.84262738e-04,
1.64505028e-03, 1.29632884e-03, nan]],
[[ nan, 9.29811723e-04, 1.41735926e-03,
4.27378209e-03, 1.68616998e-03, 1.02220376e-03],
[9.29811723e-04, nan, 5.03392825e-03,
2.18560888e-04, 1.07598346e-02, 5.34012235e-04],
[1.41735926e-03, 5.03392825e-03, nan,
1.28918073e-02, 8.57282843e-03, 2.64076362e-03],
[4.27378209e-03, 2.18560888e-04, 1.28918073e-02,
...
[5.01858365e-03, 2.27267564e-03, 1.13567918e-03,
nan, 5.90555481e-04, 1.23487106e-02],
[1.38762066e-02, 4.13196084e-03, 4.23298873e-03,
5.90555481e-04, nan, 8.10007719e-03],
[3.16456803e-03, 4.88729530e-04, 1.09069202e-03,
1.23487106e-02, 8.10007719e-03, nan]],
[[ nan, 7.76746607e-03, 6.27361630e-03,
6.40287465e-03, 8.90128244e-03, 5.96959242e-04],
[7.76746607e-03, nan, 4.77221447e-04,
1.20390681e-03, 5.20644907e-03, 3.40699722e-05],
[6.27361630e-03, 4.77221447e-04, nan,
9.03598231e-07, 2.13567259e-03, 1.54998485e-05],
[6.40287465e-03, 1.20390681e-03, 9.03598231e-07,
nan, 2.76771929e-04, 4.57488925e-03],
[8.90128244e-03, 5.20644907e-03, 2.13567259e-03,
2.76771929e-04, nan, 7.53194350e-04],
[5.96959242e-04, 3.40699722e-05, 1.54998485e-05,
4.57488925e-03, 7.53194350e-04, nan]]]],
shape=(30, 61, 6, 6))
Coordinates:
* time (time) float64 240B 0.0 0.08 0.16 0.24 ... 2.08 2.16 2.24 2.32
* frequency (frequency) float64 488B 0.0 12.5 25.0 37.5 ... 725.0 737.5 750.0
* source (source) <U1 24B '0' '1' '2' '3' '4' '5'
* target (target) <U1 24B '0' '1' '2' '3' '4' '5'
Attributes: (12/16)
mt_detrend_type: constant
mt_frequency_resolution: 50.0
mt_is_low_bias: True
mt_n_fft_samples: 120
mt_n_signals: 6
mt_n_tapers: 3
... ...
mt_sampling_frequency: 1500
mt_start_time: 0
mt_summarize_parameters: <bound method Multitaper.summarize_parame...
mt_time_halfbandwidth_product: 2
mt_time_window_duration: 0.08
mt_time_window_step: 0.08coherence_magnitude.plot(col="source", row="target", x="time")

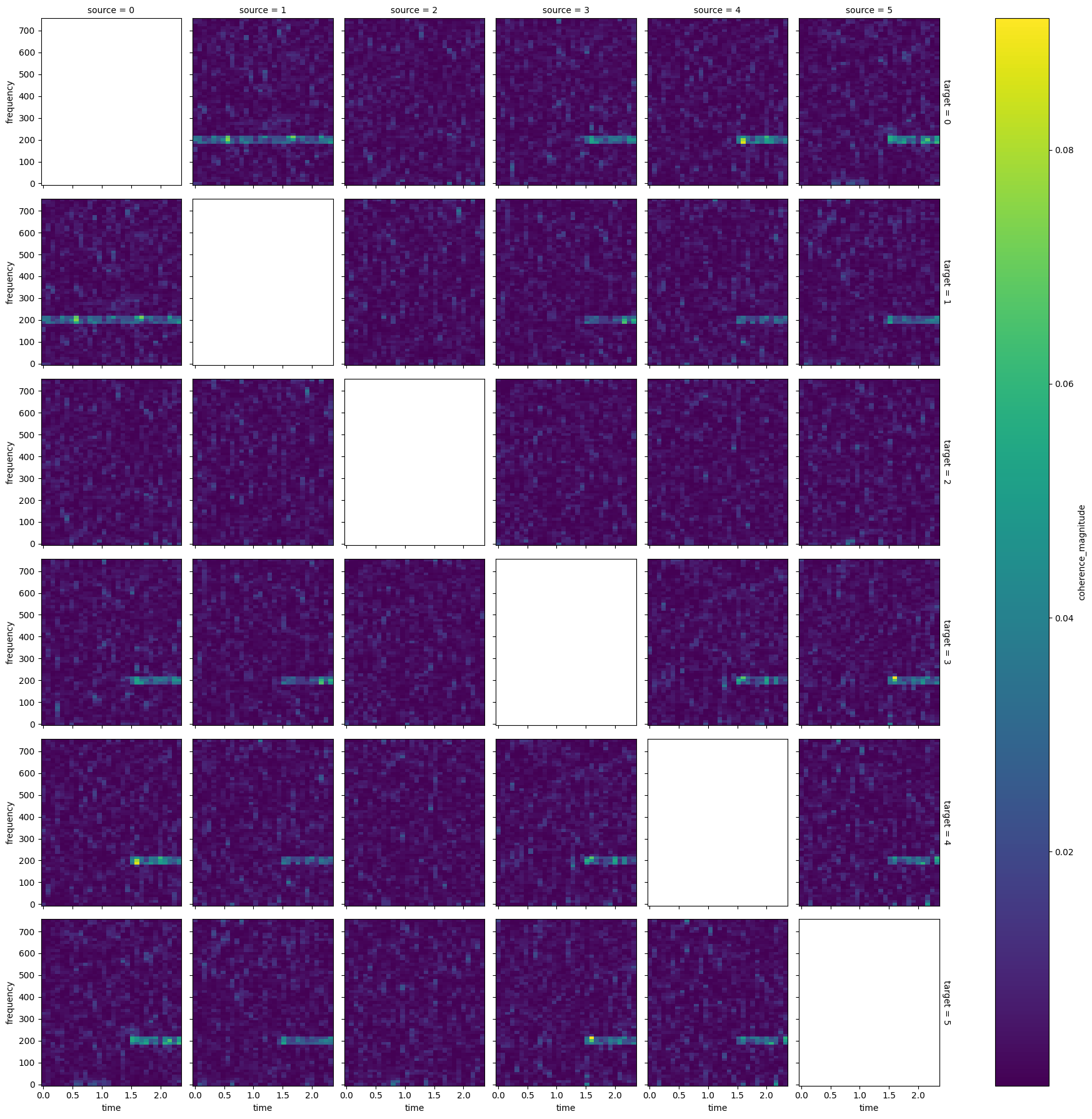

<xarray.plot.facetgrid.FacetGrid at 0x3232dd430>
